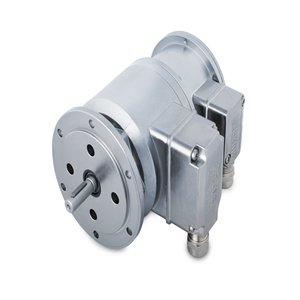

Baumer POG 11 + ESL 90 Rotary Encoder

The Baumer POG 11 + ESL 90 Rotary Encoder offers a ø115 mm size, 300 … 5000 ppr, Optical method, and 2x terminal box, 3x terminal box (with option M) connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Encoders.

Datasheet

Voltage Supply	9...30 VDC; 5 VDC ±5 %
Sensing Method	Optical
Size (flange)	ø115 mm
Connection	2x terminal box, 3x terminal box (with option M)

Baumer POG 11 + ESL 90 Rotary Encoder – Technical Specifications

Specification	Value
Voltage supply	9...30 VDC; 5 VDC ±5 %
Consumption w/o load	≤100 mA
Pulses per revolution	300 … 5000
Phase shift	90 ° ±20°
Duty cycle	40…60 %
Reference signal	Zero pulse, width 90°
Output frequency	≤120 kHz, ≤300 kHz (on request)
Output signals	K1, K2, K0 + inverted, Error output (option EMS)
Output stages	HTL-P (power linedriver), TTL/RS422
Sensing method	Optical
Switching accuracy	± 4 % (≤1500 rpm), ± 2 % (>1500 rpm)
Switching outputs	1 output, speed control
Output switching capacity	≤6 A / 250 VAC; ≤1 A / 48 VDC, (EAC: <50 VAC / 75 VDC)
Minimum switching current	100 mA
Size (flange)	ø115 mm
Shaft type	ø11 mm solid shaft
Admitted shaft load	≤300 N axial, ≤N radial
Protection EN 60529	IP 67
Range of switching speed (ns)	650...6000 rpm
Operating torque typ.	3 Ncm
Rotor moment of inertia	220 gcm²
Material	Housing: aluminium die-cast, Shaft: stainless steel
Operating temperature	-20...+85 °C
Resistance	IEC 60068-2-6, Vibration 10 g, 10-2000 Hz, IEC 60068-2-27, Shock 100 g, 11 ms
Corrosion protection	IEC 60068-2-52 Salt mist, for ambient conditions CX (C5-M) according to ISO 12944-2
Connection	2x terminal box, 3x terminal box (with option M)
Weight approx.	2.7 kg, 2.9 kg (with option M)
Flange	EURO flange B10
Operating speed	≤6000 rpm
Switching delay time	≤40 ms
