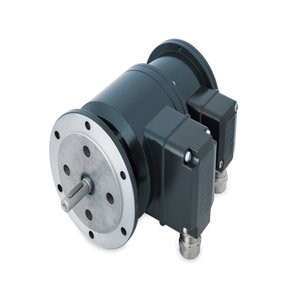

Baumer POG 10 G Rotary Encoder
The Baumer POG 10 G Rotary Encoder offers a ø115 mm size, 300 … 5000 ppr, Optical method, and 2x terminal box, 3x terminal box (with option M) connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Incremental Encoder.
| Sensing Method | Optical |
| Connection | 2x terminal box, 3x terminal box (with option M) |
Baumer POG 10 G Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 9...30 VDC, 5 VDC ±5 % |
| Consumption w/o load | ≤100 mA |
| Pulses per revolution | 300 … 5000 |
| Phase shift | 90 ° ±20° |
| Duty cycle | 40…60 % |
| Reference signal | Zero pulse, width 90° |
| Sensing method | Optical |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL-P (power linedriver), TTL/RS422 |
| Size (flange) | ø115 mm |
| Shaft type | ø11 mm solid shaft |
| Admitted shaft load | ≤300 N axial, ≤450 N radial |
| Flange | EURO flange B10 |
| Protection EN 60529 | IP 66 |
| Operating speed | ≤12000 rpm (mechanical) |
| Operating torque typ. | 2 Ncm |
| Rotor moment of inertia | 212 gcm² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -40...+100 °C, -25...+100 °C (>3072 pulses) |
| Resistance | IEC 60068-2-6, Vibration 20 g, 10-2000 Hz, IEC 60068-2-27, Shock 200 g, 6 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | 2x terminal box, 3x terminal box (with option M) |
| Weight approx. | 2.5 kg, 2.7 kg (with option M) |
Ask for the Pricing of Baumer ø11 mm Solid Shaft Type Incremental Encoder POG 10 G part no: at unbeatable prices. Detailed Specifications of POG 10 G, feature voltage supply of 9...30 VDC, 5 VDC ±5 % and pulses per revolution ranging from 300 … 5000. The encoders provide a phase shift of 90 ° ±20° and a duty cycle of 40…60 %, with a Zero pulse, width 90°. Using Optical sensing technology, the encoders offer output signals including K1, K2, K0 + inverted, Error output (option EMS). The available output stages are HTL-P (power linedriver), TTL/RS422, ensuring versatile performance. The encoders come in an ø115 mm flange size and operate at speeds of up to -40...+100 °C, -25...+100 °C (>3072 pulses). Constructed with a durable Housing: aluminium die-cast, Shaft: stainless steel, they offer connections via 2x terminal box, 3x terminal box (with option M). Now's the Time to Secure a Quote for your requirement of Baumer ø11 mm Solid Shaft Type Incremental Encoder. We're committed to offering more favorable pricing and more responsive support than other Traders.
