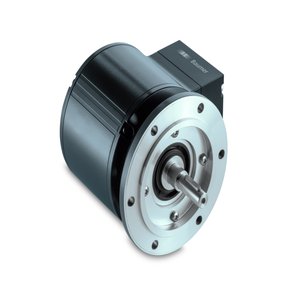

Baumer PMG10P - CANopen® Rotary Encoder
The Baumer PMG10P - CANopen® Rotary Encoder offers a ø115 mm size, ø11 mm solid shaft type, Magnetic method, and Bus connecting box, Terminal box incremental connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Absolute Encoder.
| Brand | Baumer |
| Product Type | Encoder |
| Product | PMG10P - CANopen® |
Baumer PMG10P - CANopen® Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 10...30 VDC |
| Short-circuit proof | Yes |
| Consumption w/o load | ≤200 mA |
| Initializing time | ≤500 ms after power on |
| Interface | CANopen® |
| Function | Multiturn |
| Transmission rate | 10 … 1000 kBaud |
| Device adress | Rotary switches in bus connecting box |
| Steps per revolution | 8192 / 13 bit |
| Number of revolutions | 65536 / 16 bit |
| Additional outputs | Square-wave TTL/HTL,TTL/RS422 |
| Sensing method | Magnetic |
| Programmable parameters | Bus system: see bus features, Additional output (number of pulses), switch-off and switch-on speeds |
| Diagnostic function | Position or parameter error |
| Status indicator | DUO-LED (bus connecting box) 4 LEDs in device back side |
| Switching accuracy | ± 2 % (or 1 Digit) |
| Switching outputs | 1 output (Open collector, solid state relay on request) |
| Output switching capacity | 30 VDC; ≤100 mA |
| Switching delay time | ≤20 ms |
| Size (flange) | ø115 mm |
| Shaft type | ø11 mm solid shaft |
| Flange | EURO flange B10, Housing foot B3 |
| Protection EN 60529 | IP 66 / IP 67 |
| Operating speed | ≤6000 rpm |
| Range of switching speed | ns (off) = ±2...6000 rpm, factory setting 6000 rpm |
| Operating torque typ. | 10 Ncm |
| Rotor moment of inertia | 1 kgcm² |
| Admitted shaft load | ≤450 N axial, ≤650 N radial |
| Material | Housing: aluminium alloy, Shaft: stainless steel |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions CX (C5-M) according to ISO 12944-2 |
| Operating temperature | -40...+85 °C |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration 30 g, 10-2000 Hz, IEC 60068-2-27, Shock 400 g, 1 ms |
| Weight approx. | 2.7 kg (depending on version) |
| Connection | Bus connecting box, Terminal box incremental |
Get A Quote for Baumer Interface CANopen Absolute Encoder PMG10P - CANopen® at the best price. Here are the brief Technical Specifications of PMG10P - CANopen®, are voltage supply of 10...30 VDC and consumption of ≤200 mA without load. These encoders feature a fast initializing time of ≤500 ms after power on, ensuring quick setup. The Magnetic sensing method guarantees precise performance, with 1 output (Open collector, solid state relay on request). The output switching capacity is 30 VDC; ≤100 mA. The operating speed reaches up to ≤6000 rpm, with a switching speed range of ns (off) = ±2...6000 rpm, factory setting 6000 rpm. The Housing: aluminium alloy, Shaft: stainless steel shaft for added strength. Connections include a Bus connecting box, Terminal box incremental outputs. It's Time to get a Quote for your requirement of Baumer Interface CANopen Absolute Encoder. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
