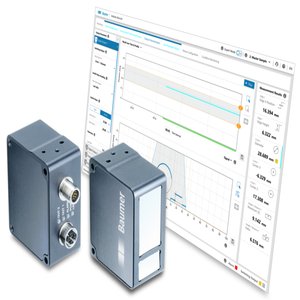

OXP200-B02C.004: 11248139 - Baumer Compact One-Box Vision Sensor
Baumer Compact One-Box Vision Sensor OXP200-B02C.004 11248139:
| Dimensions (W x H x D) | 36 mm x 74 mm x 60 mm |
| Measurement range MR | 25 mm |
| Switching outputs | 1 x Alarm Output (Push Pull) |
Baumer Compact One-Box Vision Sensor OXP200-B02C.004, 11248139 Technical Specifications:
| Specification | Value |
|---|---|
| Measurement range MR | 25 mm |
| Clearance distance | 60 mm |
| Working range (Sdc ... Sde) | 60 ... 85 mm |
| Reference distance | 72.5 mm |
| Field of view (@Sdc ... Sde) | 20 mm ... 28 mm |
| Resolution X (@Sdc ... Sde) | 30 ... 40 µm |
| Profiles per second | 100 ... 400 Hz |
| Profile points | 700 pixel |
| Resolution Z (@Sdc ... Sde) | 5 µm |
| Repeat accuracy Z | 2 µm |
| Linearity deviation Z | ± 0.1 % MR |
| Temperature drift | ± 0.04 %Sde/K |
| Laser class | 2 |
| Laser wavelength | Blue (405 nm) |
| Max. laser power | 18 mW |
| Light point shape (at reference distance) | Line Length (x) 28 mm, Line Width (z) < 50 µm |
| Software / parametrisation | Integrated Webserver for parametrisation |
| Interfaces / output circuit | Fast Ethernet 100-MBit/s |
| Protocols | UDP, SDK (C#, C++, .NET, Python) |
| Voltage supply range +Vs | 18 ... 30 VDC |
| Switching outputs | 1 x Alarm Output (Push Pull) |
| Power supply | typ. 2.4W (100 mA max at 24 V), IEEE 802.3af Power over Ethernet (PoE) |
| Electrical connection | M12, 12-pin, A-coded, male |
| Ethernet connection | M12 8-pol, X-coded, female |
| Trigger input specification | High Level: 8 V ... +Ub / PoE 8 ... 24 V, Low Level: < 2.5 V |
| Material | Case: Aluminium, Front Cover: Glass |
| Dimensions (W x H x D) | 36 mm x 74 mm x 60 mm |
| Width | 36 mm |
| Height | 74 mm |
| Depth | 60 mm |
| Weight | 270 g |
| Ambient temperature | 0 ... + 45 °C |
| Storage temperature | - 10 ... + 60 °C |
| Ambient humidity | 20 ... 85 % |
| Protection class (IEC 60529) | IP 65 |
| Vibration (sinusoidal) | 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis, 30 min endurance at f = 55 Hz per axis, IEC 60068-2-6:2008 |
| Shock (semi-sinusoidal) | 30 g / 11 ms, 6 jolts per axis and direction, IEC 60068-2-27:2009 |
| Ambient light immunity | < 25 kLux |
| Conformity | CE, UL |
| Encoder input specifications | 4 Inputs Differential: A/B, HTL / TTL available, High Level: 2.5 V ... +Ub / PoE 2.5 ... 24 V, Low Level: < 1.5 V, Max. Frequency 30kHz |
Obtain a Quote for Baumer Compact One-Box Vision Sensor OXP200-B02C.004 part no: 11248139 at economical prices. Specifications Overview for OXP200-B02C.004, 11248139 reveals measurement range (MR) of 25 mm and a clearance distance of 60 mm. The field of view spans 20 mm ... 28 mm with a resolution X of 30 ... 40 µm and profile points of 700 pixel. The resolution Z ranges from 5 µm, with a repeat accuracy of 2 µm. The sensor uses a red laser with a wavelength of Blue (405 nm) and a maximum laser power of 18 mW. Operating on a voltage supply range of 18 ... 30 VDC, the sensor supports analog output signals such as . It offers 1 x Alarm Output (Push Pull) switching outputs and is equipped with an M12, 12-pin, A-coded, male connector and M12 8-pol, X-coded, female. The sensor is housed in a durable Case: Aluminium, Front Cover: Glass front cover, and its dimensions are 36 mm x 74 mm x 60 mm. Take the First Step with a Quote for your requirement of Baumer Compact One-Box Vision Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
