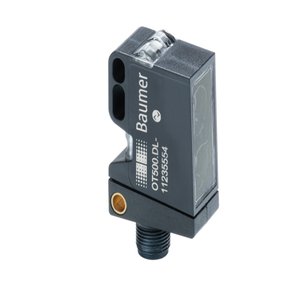

Baumer OT500.SL-NDNVB.72F Photoelectric Sensor
The Banner OT500.SL-NDNVB.72F Photoelectric Sensor offers a 18 mm diameter, Pulsed red laser diode light source, NPN output circuit, and Connector M12 5 pin connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Banner |
| Product Type | Photoelectric Sensor |
| Model Number | OT500.SL-NDNVB.72F |
Baumer OT500.SL-NDNVB.72F Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Light barrier |
| Version | Time of Flight |
| Background position Sde | 500 β¦ 2500 mm |
| Scanning range Sa | 85% ... 80% Sde |
| Power on indication | LED green |
| Output indicator | LED yellow / LED red |
| Sensing distance adjustment | qTeach / external |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1Β° |
| Light source | Pulsed red laser diode |
| Wave length | 680 nm |
| Response time / release time | < 8 ms |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Current consumption max. (no load) | 60 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Dark operate, complementary |
| Output circuit | NPN |
| Output current | 50 mA, sum of all outputs |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M12 5 pin |
| Protection class | IP 67 |
| Operating temperature | -20 β¦ +50 Β°C |
Ask for the Pricing of Baumer Reflective Sensor With Dark Operate OT500.SL-NDNVB.72F part no: 11250329 at unbeatable prices. Detailed Specifications of OT500.SL-NDNVB.72F, 11250329 feature Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 85% ... 80% Sde with adjustable sensing distance qTeach / external. It operates using a Pulsed red laser diode light source with a wave length of 680 nm. The voltage supply range is 12 β¦ 30 VDC, with a current consumption of 60 mA. The voltage drop (Vd) is less than <2 VDC, with Dark operate, complementary output functions. The output circuit is NPN, and the output current is rated at 50 mA, sum of all outputs. With a width of 18 mm and a height of 45 mm, the housing is made of durable Plastic (ASA, PMMA). This sensor is equipped with a Connector M12 5 pin connection. Now's the Time to Secure a Quote for your requirement of Baumer Reflective Sensor With Dark Operate. We're committed to offering more favorable pricing and more responsive support than other Traders.
