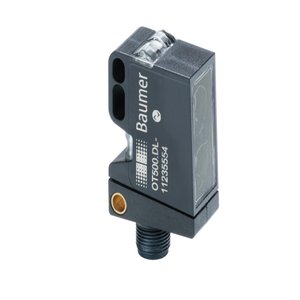

OT500.DL-GLIAJ.72F: 11240053 - Baumer Distance Measuring Sensor
Technical Specifications of Baumer Distance Measuring Sensor OT500.DL-GLIAJ.72F 11240053:
| Type | Distance measuring |
| Measuring Distance | 150 β¦ 2500 mm |
| Output Circuit | - |
| Connection Types | Connector M12 5 pin |
Baumer Distance Measuring Sensor OT500.DL-GLIAJ.72F, 11240053 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Distance measuring |
| Measuring Distance | 150 β¦ 2500 mm |
| Adjustment | Teach-in and IO-Link |
| Output Indicator | LED yellow |
| Light Source | Pulsed red laser diode |
| Wavelength | 680 nm |
| Response time / release time | < 4 ms (High Speed Mode), < 8 ms (Standard Mode), < 50 ms (Long Range Mode) |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Current consumption max. (no load) | 60 mA |
| Voltage drop Vd | <2 VDC |
| Output circuit | - |
| Output current | 50 mA (push-pull) |
| Short circuit protection | Yes |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Connection types | Connector M12 5 pin |
| Protection class | IP 67 |
| Operating temperature | -20 β¦ +50 Β°C |
IndMALL Automation Dealing offers Baumer Distance Measuring Sensor OT500.DL-GLIAJ.72F part no: 11240053 at unbeatable prices. The Main Technical Parameters of OT500.DL-GLIAJ.72F, 11240053 feature Distance measuring has a sensing range of 150 β¦ 2500 mm. It operated on a 12 β¦ 30 VDC power supply, consuming 60 mA. The sensor features LED yellow indicators, and a fast response time of < 4 ms (High Speed Mode), < 8 ms (Standard Mode), < 50 ms (Long Range Mode). It supports - output with a maximum current of 50 mA (push-pull) and a voltage drop of less than <2 VDC. Housed in a Rectangular Plastic (ASA, PMMA), the sensor measures 18 mm x 45 mm x32 mm. It includes an IP 67 rating for dust and water protection and operates in temperatures from -20 β¦ +50 Β°C. The Sensor comes with a Connector M12 5 pin. Take the First Step with a Quote for your requirement of Baumer Distance Measuring Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
