During technical comparisons, OT300-SL-PDPVT-72N appears alongside Baumer Proximity Sensor, Baumer Or18 Tl Zzzp 7Bcv and Baumer Industrial Cameras so engineers assess signal types, ingress protection, and ambient tolerances accurately.

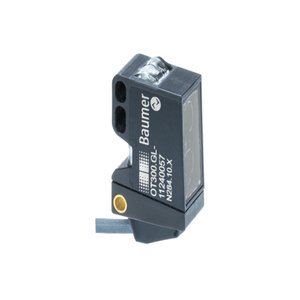

Baumer OT300.SL-PDPVT.72N Photoelectric Sensor
The Banner OT300.SL-PDPVT.72N Photoelectric Sensor offers a 12.9 mm diameter, Pulsed red laser diode light source, PNP output circuit, and Connector M8 4 pin connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Banner |
| Product Type | Photoelectric Sensor |
| Model Number | OT300.SL-PDPVT.72N |
Baumer OT300.SL-PDPVT.72N Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Light barrier |
| Version | Time of Flight |
| Scanning range Sa | 85% ... 80% Sde |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensing distance adjustment | qTeach |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 2Β° |
| Light source | Pulsed red laser diode |
| Wave length | 680 nm |
| Response time / release time | < 8 ms |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Current consumption max. (no load) | 60 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Dark operate, complementary |
| Output circuit | PNP |
| Output current | 50 mA, sum of all outputs |
| Width / diameter | 12.9 mm |
| Height / length | 32.3 mm |
| Depth | 23 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M8 4 pin |
| Protection class | IP 67 |
| Operating temperature | -20 β¦ +50 Β°C |
Get A Quote for Baumer Sensor With 4 Pin M8 Connector OT300.SL-PDPVT.72N part no: 11250344 at the best price. Here are the brief Technical Specifications of OT300.SL-PDPVT.72N, 11250344 are Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 85% ... 80% Sde with adjustable sensing distance qTeach. It operates using a Pulsed red laser diode light source with a wave length of 680 nm. The voltage supply range is 12 β¦ 30 VDC, with a current consumption of 60 mA. The voltage drop (Vd) is less than <2 VDC, with Dark operate, complementary output functions. The output circuit is PNP, and the output current is rated at 50 mA, sum of all outputs. With a width of 12.9 mm and a height of 32.3 mm, the housing is made of durable Plastic (ASA, PMMA). This sensor is equipped with a Connector M8 4 pin connection. It's Time to get a Quote for your requirement of Baumer Sensor With 4 Pin M8 Connector. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
