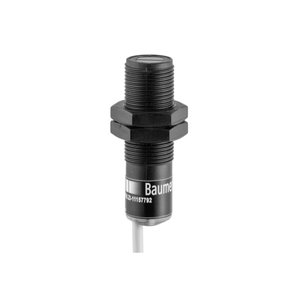

Baumer OR18.ZI-PW1P.71O/B005 Photoelectric Sensor
The Banner OR18.ZI-PW1P.71O/B005 Photoelectric Sensor offers a 18 mm diameter, < 800 mm sensing distance, PNP output circuit, and Connector M12 4 pin connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O300 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | OR18.ZI-PW1P.71O/B005 |
Baumer OR18.ZI-PW1P.71O/B005 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | < 800 mm |
| Sensing distance adjustment | Potentiometer, 270Β° |
| Light source | Pulsed infrared diode |
| Wave length | 880 nm |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 67.2 mm |
| Design | Cylindrical threaded |
| Housing material | Plastic (ABS TERLURAN) |
| Front (optics) | PMMA |
| Connection types | Connector M12 4 pin |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +55 Β°C |
| Alignment / soiled lens indicator | LED green |
| Output indicator | LED yellow |
Call us for Baumer Industrial Sensor With Precise Alignment OR18.ZI-PW1P.71O/B005 part no: 11157800 at the best rates. Technical Attributes of OR18.ZI-PW1P.71O/B005, 11157800 are Intensity difference Sensor, engineered for precise detection with a sensing distance of < 800 mm. The sensor utilizes a Pulsed infrared diode with a wavelength of 880 nm, ensuring accurate and rapid response times of less than < 1 ms. It operates within a voltage supply range of 12 β¦ 30 VDC, offering Light / dark operate functionality with a PNP output circuit capable of handling up to 100 mA of output current. Measuring 18 mm in width and 67.2 mm in height, the compact Cylindrical threaded design is housed in durable Plastic (ABS TERLURAN) materials. The connection is made via a Connector M12 4 pin. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Industrial Sensor With Precise Alignment. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
