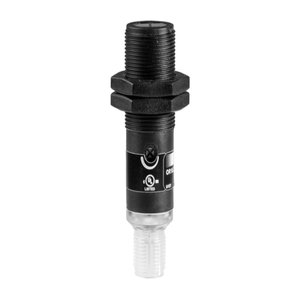

OR18.TI-ZZZP.71O: 11157821 - Baumer Through-Beam Laser Sensor
Technical Specifications of Baumer Through-Beam Laser Sensor OR18.TI-ZZZP.71O 11157821:
| Spec | Value |
|---|---|
| Type | Through beam sensor |
| Nominal range Sn | 20 m |
| Connection types | Connector M12 4 pin |
π οΈ Get Quotes Instantly from Baumer Vendors
Baumer Through-Beam Laser Sensor OR18.TI-ZZZP.71O, 11157821 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Emitter |
| Actual range Sb | 13 m |
| Nominal range Sn | 20 m |
| Power on indication | LED green |
| Voltage supply range +Vs | 12 β¦ 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Reverse polarity protection | Yes |
| Width / diameter | 18 mm |
| Height / length | 67.2 mm |
| Design | Cylindrical threaded |
| Housing material | Plastic (ABS TERLURAN) |
| Front (optics) | PMMA |
| Connection types | Connector M12 4 pin |
| Operating temperature | -25 β¦ +55 Β°C |
| Protection class | IP 67 |
| Light source | Pulsed infrared diode |
| Wave length | 880 nm |
Talk to Our Engineer for Baumer Through-Beam Laser Sensor OR18.TI-ZZZP.71O part no: 11157821 with exclusive offers. Core System Specifications of OR18.TI-ZZZP.71O, 11157821 are Through beam sensor Model Type designed for precise object detection with a nominal range of 20 m. This sensor operates on a voltage supply range of 12 β¦ 30 VDC, with a maximum current consumption of 40 mA and a typical consumption of 30 mA. The compact Cylindrical threaded design features dimensions of 18 mm in width, 67.2 mm in height, and in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (ABS TERLURAN) offering robustness for demanding applications. The sensor connects via a Connector M12 4 pin making it suitable for seamless integration into your system. With a Emitter. Don't Miss Out on a Quote for your requirement of Baumer Through-Beam Laser Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
