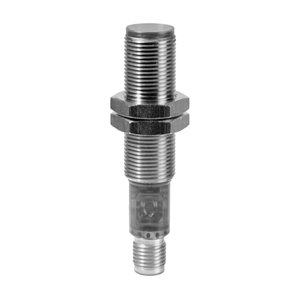

Baumer OR18.SP-GW1B.7BO Photoelectric Sensor
The Banner OR18.SP-GW1B.7BO Photoelectric Sensor offers a 18 mm diameter, Pulsed PinPoint LED light source, Push-pull output circuit, and Connector M12 4 pin connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Banner |
| Product Type | Photoelectric Sensor |
| Model Number | OR18.SP-GW1B.7BO |
Baumer OR18.SP-GW1B.7BO Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Light barrier |
| Version | Standard object detection |
| Background position Sde | 55 β¦ 300 mm |
| Scanning range Sa | 90% ... 85% Sde |
| Output indicator | LED yellow |
| Sensing distance adjustment | qTeach / external |
| Suppression of reciprocal influence | Yes |
| Light source | Pulsed PinPoint LED |
| Wave length | 630 nm |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 45 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 65 mm |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Front (optics) | PA |
| Connection types | Connector M12 4 pin |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +60 Β°C |
Obtain a Quote for Baumer Cylindrical Threaded Design Sensor OR18.SP-GW1B.7BO part no: 11128095 at economical prices. Specifications Overview for OR18.SP-GW1B.7BO, 11128095 reveals Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 90% ... 85% Sde with adjustable sensing distance qTeach / external. It operates using a Pulsed PinPoint LED light source with a wave length of 630 nm. The voltage supply range is 10 β¦ 30 VDC, with a current consumption of 45 mA. The voltage drop (Vd) is less than <3 VDC, with Light / dark operate output functions. The output circuit is Push-pull, and the output current is rated at 100 mA. With a width of 18 mm and a height of 65 mm, the housing is made of durable Brass nickel plated. This sensor is equipped with a Connector M12 4 pin connection. Take the First Step with a Quote for your requirement of Baumer Cylindrical Threaded Design Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
