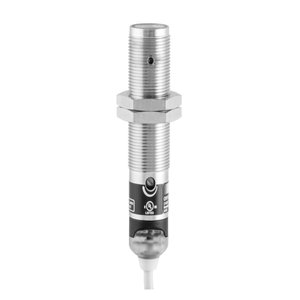

Baumer OR18.EL-PV1P.7BCV Photoelectric Sensor
The Baumer OR18.EL-PV1P.7BCV Photoelectric Sensor offers a Cylindrical threaded design, 60 m nominal range, Receiver, PNP complementary output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | OR18.EL-PV1P.7BCV |
Baumer OR18.EL-PV1P.7BCV Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 55 m |
| Nominal range Sn | 60 m |
| Output indicator | LED yellow |
| Power on indication | LED green |
| Sensitivity adjustment | Potentiometer, 270Β° |
| Response time / release time | < 0.34 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 45 mA |
| Current consumption typ. | 35 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 18 mm |
| Height / length | 77 mm |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Operating temperature | -10 β¦ +55 Β°C |
| Protection class | IP 67 |
Mail Us for your needs in Baumer Standard Through Beam Sensor OR18.EL-PV1P.7BCV part no: 11157818 with budget-friendly prices. The Main Technical Parameters of OR18.EL-PV1P.7BCV, 11157818 inludce Through beam sensor Model Type designed for precise object detection with a nominal range of 60 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 45 mA and a typical consumption of 35 mA. The compact Cylindrical threaded design features dimensions of 18 mm in width, 77 mm in height, and in depth, ensuring easy installation in various industrial environments. The housing is made from durable Brass nickel plated offering robustness for demanding applications. The sensor connects via a Cable 4 pin, 2 m making it suitable for seamless integration into your system. With a Receiver.Customize Your Experience with a Quote for your requirement of Baumer Standard Through Beam Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
