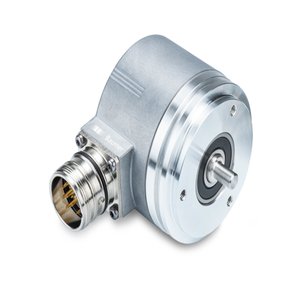

Baumer optoTurn EN580E.ML-SU06.G$$1B.13120.H/11250118 Rotary Encoder
Technical Specifications of Baumer Multiturn 12 bit optoTurn EN580E.ML-SU06.G$$1B.13120.H/11250118 11250118:
| Voltage supply | 8...30 VDC |
| Interface | SSI |
| Sensing method | Optical |
| Connection | Flange connector M23, 12-pin, CW (option 3252) |
Baumer optoTurn EN580E.ML-SU06.G$$1B.13120.H/11250118 Rotary Encoder โ Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | โค80 mA (24 VDC) |
| Interface | SSI |
| Function | Multiturn |
| Absolute accuracy | ยฑ0.03 ยฐ |
| Sensing method | Optical |
| Size (flange) | รธ58 mm |
| Shaft type | รธ6 x 10 mm, solid shaft with flat |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | โค6000 rpm (+25 ยฐC) |
| Starting torque | โค0.02 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 ยฐC (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration ยฑ4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
| Weight approx. | 400 g |
| Connection | Flange connector M23, 12-pin, CW (option 3252) |
| Flange | Synchro flange |
| Admitted shaft load | โค40 N axial, โค80 N radial |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | SSI data: Linedriver RS422 |
| Output signals | SSI data |
Send Your Inquiry for Baumer Multiturn 12 bit optoTurn EN580E.ML-SU06.G$$1B.13120.H/11250118 part no: 11250118 with cost-effective solutions. Essential Technical Specs of optoTurn EN580E.ML-SU06.G$$1B.13120.H/11250118, 11250118 are voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is รธ58 mm, making them suitable for various industrial applications. The operating speed reaches up to โค6000 rpm (+25 ยฐC) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CW (option 3252), ensuring secure and efficient data transmission. Capture the Best Deal with a Quote for your requirement of Baumer Multiturn 12 bit. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
