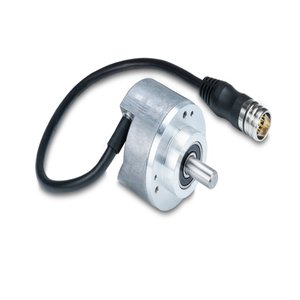

Baumer optoTurn EN580E.ML-SC10.GE1B1.13120.H Rotary Encoder
Technical Specifications of Baumer 13 bit ST Encoder optoTurn EN580E.ML-SC10.GE1B1.13120.H 11246051:
| Voltage supply | 8...30 VDC |
| Interface | BiSS C Certified |
| Sensing method | Optical |
| Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
Baumer optoTurn EN580E.ML-SC10.GE1B1.13120.H Rotary Encoder โ Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | โค80 mA (24 VDC) |
| Interface | BiSS C Certified |
| Function | Multiturn |
| Absolute accuracy | ยฑ0.03 ยฐ |
| Sensing method | Optical |
| Size (flange) | รธ58 mm |
| Shaft type | รธ10 x 20 mm, solid shaft with flat |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | โค6000 rpm (+25 ยฐC) |
| Starting torque | โค0.02 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 ยฐC (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration ยฑ4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
| Weight approx. | 400 g |
| Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
| Flange | Clamping flange |
| Admitted shaft load | โค40 N axial, โค80 N radial |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | BiSS data: Linedriver RS422 |
| Output signals | BiSS data (SLO) |
Please speak to our Technical Engineer for Baumer 13 bit ST Encoder optoTurn EN580E.ML-SC10.GE1B1.13120.H part no: 11246051 at attractive prices. Technical Specs Summary of optoTurn EN580E.ML-SC10.GE1B1.13120.H, 11246051 includes voltage supply of 8...30 VDC. These encoders feature the BiSS C Certified interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is รธ58 mm, making them suitable for various industrial applications. The operating speed reaches up to โค6000 rpm (+25 ยฐC) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flylead connector M23, 12-pin, tangential, length 300 mm, ensuring secure and efficient data transmission. Match Your Needs with a Quote for your requirement of Baumer 13 bit ST Encoder. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
