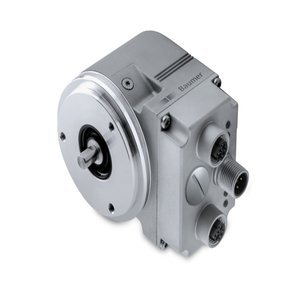

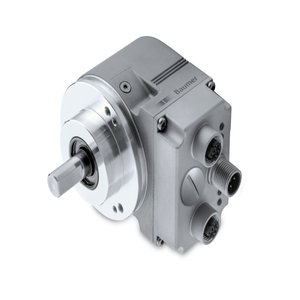

Baumer optoTurn EAL580-SV - EtherCAT Rotary Encoder
The Baumer optoTurn EAL580-SV - EtherCAT Rotary Encoder offers a Multiturn function, Optical sensing method, ΓΈ6 x 10 mm, solid shaft with flat shaft type, and Flange connector 3xM12 connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the EAL580-B Series.
| Brand | Sick |
| Product Type | Rotary Encoders |
| Model Number | optoTurn EAL580-SV - EtherCAT |
Baumer optoTurn EAL580-SV - EtherCAT Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 10...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | β€100 mA (24 VDC) |
| Interface | EtherCAT |
| Function | Multiturn |
| Total resolution | β€ 31 bit |
| Absolute accuracy | Β±0.01 Β° (ST 18 bit / MT 13 bit), Β±0.025 Β° (ST 13 bit / MT 16 bit) |
| Sensing method | Optical |
| Status indicator | 4x LED integrated in housing |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ6 x 10 mm, solid shaft with flat |
| Protection EN 60529 | IP 54, IP 65, IP 67 |
| Operating speed | β€10000 rpm (mechanical), β€6000 rpm (electric) |
| Starting acceleration | β€1000 U/sΒ² |
| Starting torque | β€0.03 Nm (+25 Β°C, IP 65 / IP 67), β€0.015 Nm (+25 Β°C, IP 54) |
| Rotor moment of inertia | 20 gcmΒ² |
| Material | Housing: zinc diecast, Flange: aluminium |
| Operating temperature | -40...+85 Β°C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration Β±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 2 ms |
| Weight approx. | 500 g |
| Connection | Flange connector 3xM12 |
The Baumer optoTurn EAL580-SV - EtherCAT features a solid shaft of ΓΈ6 x 10 mm and a rugged Synchro flange design that ensures secure mounting and long-term mechanical stability. Powered by a 10...30 VDC supply with reverse polarity protection, it consumes less than 100 mA without load, ensuring energy efficiency. With EtherCAT communication, the encoder provides real-time data transmission critical for high-speed control systems. Its optical sensing method delivers exceptional accuracyβup to Β±0.01Β° with a total resolution of 31 bits across multiturn and single-turn operations. The device supports both mechanical speeds up to 10,000 rpm and electrical speeds up to 6,000 rpm, backed by an integrated 4x LED status indicator for instant diagnostics.
Engineered for industrial resilience, the housing is made of zinc diecast while the flange is constructed from aluminum, delivering reliable operation across a wide temperature range from -40 to +85 Β°C. The encoder complies with IP54, IP65, and IP67 protection ratings, and withstands high shock (100 g for 2 ms) and vibration levels (10 g up to 2000 Hz), meeting EN 60068 standards. Its low starting torque and minimal rotor inertia of 20 gcmΒ² allow seamless integration with servo systems and lightweight axes. The flange connector 3xM12 ensures easy and robust connectivity, reducing installation time and minimizing errors in data transmission.
The Baumer Solid Shaft with Synchro Flange encoder is purpose-built for use in high-precision automation systems. In robotics, it ensures smooth multi-joint coordination with real-time position updates. On packaging and printing lines, it enables accurate registration control and synchronized motion across fast-moving units. For machine tools and textile machines, its compact ΓΈ58 mm flange fits into tight spaces while maintaining measurement accuracy. This encoder also excels in conveyor tracking, servo motor feedback, and wind turbine monitoringβanywhere where durability, accuracy, and real-time feedback are essential. Whether youβre modernizing legacy equipment or building new smart machinery, the EAL580-SV - EtherCAT delivers trust and performance you can count on.
