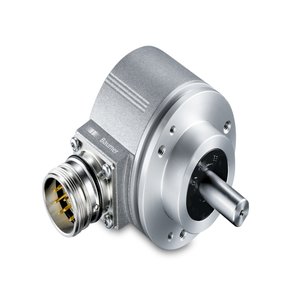

Baumer optoPulse ExEIL580-SC Rotary Encoder
The Baumer optoPulse ExEIL580-SC Rotary Encoder offers a ΓΈ58 mm size, 100 β¦ 5000 ppr, Optical method, and Flange connector M12, 8-pin, Flange connector M23, 12-pin, Cable connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the EIL580 Series.
| Voltage supply | 5 VDC Β±5 %, 8...30 VDC, 4.75...30 VDC |
| Sensing method | Optical |
| Size (flange) | ΓΈ58 mm |
| Connection | Flange connector M12, 8-pin, Flange connector M23, 12-pin, Cable |
Baumer optoPulse ExEIL580-SC Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 5 VDC Β±5 %, 8...30 VDC, 4.75...30 VDC |
| Consumption w/o load | β€70 mA |
| Pulses per revolution | 100 β¦ 5000 |
| Phase shift | 90 Β° Β±10Β° |
| Duty cycle | 40β¦60 % |
| Reference signal | Zero pulse, width 90Β° Β±10 % |
| Sensing method | Optical |
| Output frequency | β€300 kHz (TTL), β€160 kHz (HTL) |
| Output signals | A+, B+, R+, A-, B-, R- |
| Output stages | TTL/RS422, HTL/push-pull |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ10 x 20 mm, solid shaft with flat |
| Protection EN 60529 | IP 65 |
| Operating speed | β€12000 rpm (+20 Β°C), β€11000 rpm (+40 Β°C), β€8000 rpm (+60 Β°C) |
| Starting torque | β€0.015 Nm (+20 Β°C) |
| Material | Housing: aluminium die-cast, Flange: aluminium, Solid shaft: stainless steel |
| Relative humidity | 90 % non-condensing |
| Resistance | EN 60068-2-6, Vibration 30 g, 10-2000 Hz, EN 60068-2-27, Shock 300 g, 6 ms |
| Connection | Flange connector M12, 8-pin, Flange connector M23, 12-pin, Cable |
| Weight approx. | 300 g |
Give Us a Call for Baumer TTL Output Signal Incremental Encoder optoPulse ExEIL580-SC at the lowest pricing. In-depth Technical Analysis of optoPulse ExEIL580-SC feature voltage supply of 5 VDC Β±5 %, 8...30 VDC, 4.75...30 VDC and a low power consumption of β€70 mA without load. These encoders use Optical sensing for accurate measurement and provide output frequencies of β€300 kHz (TTL), β€160 kHz (HTL). The available output stages include TTL/RS422, HTL/push-pull. The encoders feature a ΓΈ58 mm flange size and operate at speeds of up to β€12000 rpm (+20 Β°C), β€11000 rpm (+40 Β°C), β€8000 rpm (+60 Β°C). The Housing: aluminium die-cast, Flange: aluminium, Solid shaft: stainless steel. Connection options include Flange connector M12, 8-pin, Flange connector M23, 12-pin, Cable. The approximate weight is 300 g. Elevate Your Project with a Quote for your requirement of Baumer TTL Output Signal Incremental Encoder . Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
