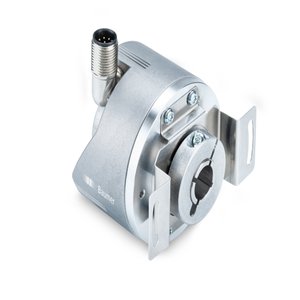

Baumer optoPulse EN580E.IL-TT12.GA1S1.01024.K Rotary Encoder
The Baumer optoPulse EN580E.IL-TT12.GA1S1.01024.K Rotary Encoder offers a ΓΈ58 mm size, ppr, Optical method, and Connector M12, 8-pin, flexible connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the EIL580 Series.
| Voltage supply | 5 VDC Β±5 % |
| Sensing method | Optical |
| Size (flange) | ΓΈ58 mm |
| Connection | Connector M12, 8-pin, flexible |
Baumer optoPulse EN580E.IL-TT12.GA1S1.01024.K Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 5 VDC Β±5 % |
| Consumption w/o load | β€70 mA |
| Phase shift | 90 Β° Β±10Β° |
| Sensing method | Optical |
| Output frequency | β€180 kHz (-3 dB) |
| Output signals | A+, B+, R+, A-, B-, R- |
| Output stages | SinCos 1 Vpp |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ12 mm (through hollow shaft) |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | β€6000 rpm (+25 Β°C) |
| Starting torque | β€0.04 Nm |
| Material | Housing: aluminium, Solid shaft: stainless steel |
| Operating temperature | -25...+100 Β°C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6 Vibration 10 g, 10-2000 Hz, EN 60068-2-27 Shock 100 g, 11 ms |
| Connection | Connector M12, 8-pin, flexible |
| Weight approx. | 300 g |
Ask for the Pricing of Baumer SinCos Output optoPulse EN580E.IL-TT12.GA1S1.01024.K part no: 11246038 at unbeatable prices. Detailed Specifications of optoPulse EN580E.IL-TT12.GA1S1.01024.K, 11246038 feature voltage supply of 5 VDC Β±5 % and a low power consumption of β€70 mA without load. These encoders use Optical sensing for accurate measurement and provide output frequencies of β€180 kHz (-3 dB). The available output stages include SinCos 1 Vpp. The encoders feature a ΓΈ58 mm flange size and operate at speeds of up to β€6000 rpm (+25 Β°C). The Housing: aluminium, Solid shaft: stainless steel. Connection options include Connector M12, 8-pin, flexible. The approximate weight is 300 g. Now's the Time to Secure a Quote for your requirement of Baumer SinCos Output. We're committed to offering more favorable pricing and more responsive support than other Traders.
