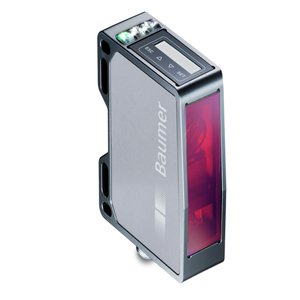

Baumer OM70T-P0250.HH0240.VI Ultrasonic Distance Sensor
The Baumer OM70T-P0250.HH0240.VI Laser Distance Sensor offers a Rectangular, front view design, 50 β¦ 250 mm scanning range, Analog and RS 485 output, and Connector M12 8 pin connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OM70 Series.
| Measuring distance Sd | 50 β¦ 250 mm |
| Measuring range Mr | 200 mm |
| Output circuit | Analog and RS 485 |
Baumer OM70T-P0250.HH0240.VI Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Tolerance measuring |
| Measuring distance Sd | 50 β¦ 250 mm |
| Measuring range Mr | 200 mm |
| Adjustment | Touch Display, RS485 |
| Power on indication | LED green |
| Output indicator | LED yellow / LED red |
| Repeat accuracy | 0.3 β¦ 2 Β΅m |
| Linearity error | Β± 0.09 % Mr |
| Beam type | Point |
| Temperature drift | 0,025 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Response delay | 0.8 ms |
| Measuring frequency | 2500 Hz |
| Voltage supply range +Vs | 15 β¦ 28 VDC |
| Current consumption max. (no load) | 75 mA |
| Output circuit | Analog and RS 485 |
| Interface | RS485 |
| Baud rate | 115200, adjustable |
| Width / diameter | 26 mm |
| Height / length | 74 mm |
| Depth | 55 mm |
| Design | Rectangular, front view |
| Housing material | Aluminum |
| Front (optics) | Glass |
| Connection types | Connector M12 8 pin |
| Ambient light immunity | < 175 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Output signal | 4 ... 20 mA / 0 ... 10 VDC |
| Output current | 100 mA |
| Switching output | Push-pull |
| Weight | 130 g |
Reach Us by Email for Baumer Tolerance Measuring Laser Sensor OM70T-P0250.HH0240.VI part no: 11175094 at Discounted Rates. Key Technical Features of OM70T-P0250.HH0240.VI, 11175094 are distance range of 30 β¦ 300 mm. This sensor utilizes Teach-in and IO-Link with a LED green power-on indicator. The Point type is point-based, using a Pulsed infrared diode at a wavelength of 860 nm. The sensor operates within a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 45 mA. The compact Rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, offering easy installation in tight spaces. Constructed with durable Plastic (ASA, PMMA) housing, the front optics are made of PMMA for enhanced protection. The sensor connects via an Cable 4 pin, 2 m making it ideal for industrial applications requiring high precision. Navigate Your Needs with a Quote for your requirement of Baumer Tolerance Measuring Laser Sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
