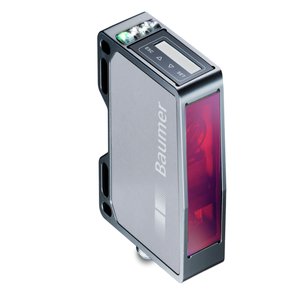

Baumer OM70T-L0250.HH0240.VI Ultrasonic Distance Sensor
The Baumer OM70T-L0250.HH0240.VI Laser Distance Sensor offers a Rectangular, front view design, 50 β¦ 250 mm scanning range, Analog and RS 485 output, and Connector M12 8 pin connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OM70 Series.
| Measuring distance Sd | 50 β¦ 250 mm |
| Measuring range Mr | 200 mm |
| Output circuit | Analog and RS 485 |
Baumer OM70T-L0250.HH0240.VI Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Tolerance measuring |
| Measuring distance Sd | 50 β¦ 250 mm |
| Measuring range Mr | 200 mm |
| Adjustment | Touch Display, RS485 |
| Power on indication | LED green |
| Output indicator | LED yellow / LED red |
| Repeat accuracy | 0.3 β¦ 2 Β΅m |
| Linearity error | Β± 0.09 % Mr |
| Beam type | Line |
| Temperature drift | 0,025 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Response delay | 0.8 ms |
| Measuring frequency | 2500 Hz |
| Voltage supply range +Vs | 15 β¦ 28 VDC |
| Current consumption max. (no load) | 75 mA |
| Output circuit | Analog and RS 485 |
| Interface | RS485 |
| Baud rate | 115200, adjustable |
| Width / diameter | 26 mm |
| Height / length | 74 mm |
| Depth | 55 mm |
| Design | Rectangular, front view |
| Housing material | Aluminum |
| Front (optics) | Glass |
| Connection types | Connector M12 8 pin |
| Ambient light immunity | < 170 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Output signal | 4 ... 20 mA / 0 ... 10 VDC |
| Output current | 100 mA |
| Switching output | Push-pull |
| Weight | 130 g |
Give Us a Call for Baumer Industrial Laser Sensor OM70T-L0250.HH0240.VI part no: 11175097 at the lowest pricing. In-depth Technical Analysis of OM70T-L0250.HH0240.VI, 11175097 feature distance range of 30 β¦ 70 mm. This sensor utilizes Touch Display, RS485 with a LED green power-on indicator. The Point type is point-based, using a Pulsed red laser diode at a wavelength of 660 nm. The sensor operates within a voltage supply range of 15 β¦ 28 VDC, with a maximum current consumption of 75 mA. The compact Rectangular, front view design measures 26 mm in width, 74 mm in height, and 55 mm in depth, offering easy installation in tight spaces. Constructed with durable Aluminum housing, the front optics are made of Glass for enhanced protection. The sensor connects via an Connector M12 8 pin making it ideal for industrial applications requiring high precision. Elevate Your Project with a Quote for your requirement of Baumer Industrial Laser Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
