Baumer OM70-P1000.HV0500.VI Ultrasonic Distance Sensor

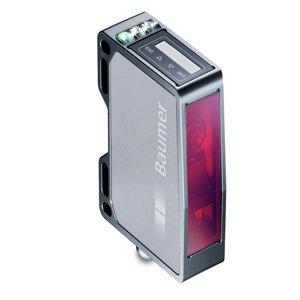

The Baumer OM70-P1000.HV0500.VI Laser Distance Sensor offers a Rectangular, front view design, 100 β¦ 1000 mm scanning range, Analog and RS 485 output, and Connector M12 8 pin connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OM70 Series.
| Measuring distance Sd | 100 β¦ 1000 mm |
| Measuring range Mr | 900 mm |
| Output circuit | Analog and RS 485 |
Baumer OM70-P1000.HV0500.VI Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 100 β¦ 1000 mm |
| Measuring range Mr | 900 mm |
| Adjustment | Touch Display, RS485 |
| Power on indication | LED green |
| Output indicator | LED yellow / LED red |
| Repeat accuracy | 1 β¦ 32 Β΅m |
| Linearity error | Β± 0.19 % Mr |
| Beam type | Point |
| Temperature drift | 0,065 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Response delay | 0.8 ms |
| Measuring frequency | 2500 Hz |
| Voltage supply range +Vs | 15 β¦ 28 VDC |
| Current consumption max. (no load) | 75 mA |
| Output circuit | Analog and RS 485 |
| Interface | RS485 |
| Baud rate | 115200, adjustable |
| Width / diameter | 26 mm |
| Height / length | 74 mm |
| Depth | 55 mm |
| Design | Rectangular, front view |
| Housing material | Aluminum |
| Front (optics) | Glass |
| Connection types | Connector M12 8 pin |
| Ambient light immunity | < 100 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Output signal | 4 ... 20 mA / 0 ... 10 VDC |
| Output current | 100 mA |
| Switching output | Push-pull |
| Weight | 130 g |
Mail Us for your needs in Baumer 8-pin Connection Laser Sensor OM70-P1000.HV0500.VI part no: 11199108 with budget-friendly prices. The Main Technical Parameters of OM70-P1000.HV0500.VI, 11199108 inludce distance range of 100 β¦ 1000 mm. This sensor utilizes Webserver, Ethernet TCP/IP with a LED green power-on indicator. The Point type is point-based, using a Pulsed red laser diode at a wavelength of 660 nm. The sensor operates within a voltage supply range of 15 β¦ 28 VDC, with a maximum current consumption of 75 mA. The compact Rectangular, front view design measures 26 mm in width, 74 mm in height, and 55 mm in depth, offering easy installation in tight spaces. Constructed with durable Aluminum housing, the front optics are made of Glass for enhanced protection. The sensor connects via an Connector M12 8 pin & M12 4 pin making it ideal for industrial applications requiring high precision. Customize Your Experience with a Quote for your requirement of Baumer 8-pin Connection Laser Sensor . Experience the difference with our competitive pricing and superior support over other Suppliers.
