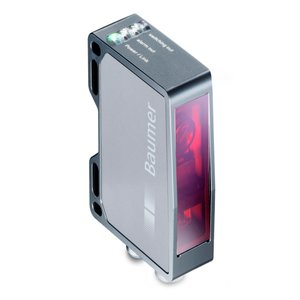

Baumer OM70-L1500.HV1500.EK Ultrasonic Distance Sensor
The Baumer OM70-L1500.HV1500.EK Laser Distance Sensor offers a Rectangular, front view design, 150 β¦ 1500 mm scanning range, Analog and digital output, and Connector M12 8 pin & M12 4 pin connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OM70 Series.
| Measuring distance Sd | 150 β¦ 1500 mm |
| Measuring range Mr | 1350 mm |
| Output circuit | Analog and digital |
Baumer OM70-L1500.HV1500.EK Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 150 β¦ 1500 mm |
| Measuring range Mr | 1350 mm |
| Adjustment | Webserver, Ethernet TCP/IP |
| Power on indication | LED green |
| Output indicator | LED yellow / LED red |
| Repeat accuracy | 3 β¦ 63 Β΅m |
| Linearity error | Β± 0.32 % Mr |
| Beam type | Line |
| Temperature drift | 0,100 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Response delay | 0.8 ms |
| Measuring frequency | 2000 Hz |
| Voltage supply range +Vs | 15 β¦ 28 VDC |
| Current consumption max. (no load) | 75 mA |
| Output circuit | Analog and digital |
| Interface | Ethernet TCP/IP |
| Protocol | Profinet (Class B), Modbus TCP, OPC UA, UDP streaming, EtherNet/IP |
| Width / diameter | 26 mm |
| Height / length | 74 mm |
| Depth | 55 mm |
| Design | Rectangular, front view |
| Housing material | Aluminum |
| Front (optics) | Glass |
| Connection types | Connector M12 8 pin & M12 4 pin |
| Ambient light immunity | < 35 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Output signal | 4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC |
| Output current | 100 mA |
| Switching output | Push-pull |
| Weight | 135 g |
Mail Us for your needs in Baumer Distance Sensor With Connector M12 OM70-L1500.HV1500.EK part no: 11216510 with budget-friendly prices. The Main Technical Parameters of OM70-L1500.HV1500.EK, 11216510 inludce distance range of 150 β¦ 1500 mm. This sensor utilizes Touch Display, RS485 with a LED green power-on indicator. The Line type is point-based, using a Pulsed red laser diode at a wavelength of 660 nm. The sensor operates within a voltage supply range of 15 β¦ 28 VDC, with a maximum current consumption of 75 mA. The compact Rectangular, front view design measures 26 mm in width, 74 mm in height, and 55 mm in depth, offering easy installation in tight spaces. Constructed with durable Aluminum housing, the front optics are made of Glass for enhanced protection. The sensor connects via an Connector M12 8 pin making it ideal for industrial applications requiring high precision. Customize Your Experience with a Quote for your requirement of Baumer Distance Sensor With Connector M12. Experience the difference with our competitive pricing and superior support over other Suppliers.
