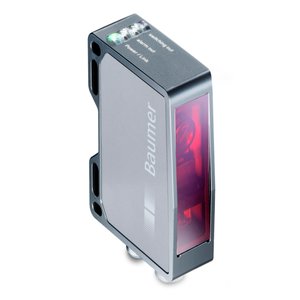

Baumer OM70-L0070.HH0065.VI Ultrasonic Distance Sensor
The Baumer OM70-L0070.HH0065.VI Laser Distance Sensor offers a Rectangular, front view design, 30 β¦ 70 mm scanning range, Analog and RS 485 output, and Connector M12 8 pin connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OM70 Series.
| Measuring distance Sd | 30 β¦ 70 mm |
| Measuring range Mr | 40 mm |
| Output circuit | Analog and RS 485 |
Baumer OM70-L0070.HH0065.VI Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 30 β¦ 70 mm |
| Measuring range Mr | 40 mm |
| Adjustment | Touch Display, RS485 |
| Power on indication | LED green |
| Output indicator | LED yellow / LED red |
| Repeat accuracy | 0.1 β¦ 0.3 Β΅m |
| Linearity error | Β± 0.06 % Mr |
| Beam type | Line |
| Temperature drift | 0,01 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Response delay | 0.8 ms |
| Measuring frequency | 2500 Hz |
| Voltage supply range +Vs | 15 β¦ 28 VDC |
| Current consumption max. (no load) | 75 mA |
| Output circuit | Analog and RS 485 |
| Interface | RS485 |
| Baud rate | 115200, adjustable |
| Width / diameter | 26 mm |
| Height / length | 74 mm |
| Depth | 55 mm |
| Design | Rectangular, front view |
| Housing material | Aluminum |
| Front (optics) | Glass |
| Connection types | Connector M12 8 pin |
| Ambient light immunity | < 28 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Output signal | 4 ... 20 mA / 0 ... 10 VDC |
| Output current | 100 mA |
| Switching output | Push-pull |
| Weight | 130 g |
Get A Quote for Baumer High Performance Distance Sensor OM70-L0070.HH0065.VI part no: 11112017 at the best price. Here are the brief Technical Specifications of OM70-L0070.HH0065.VI, 11112017 are distance range of 40 β¦ 140 mm. This sensor utilizes Webserver, Ethernet TCP/IP with a LED green power-on indicator. The Line type is point-based, using a Pulsed red laser diode at a wavelength of 660 nm. The sensor operates within a voltage supply range of 15 β¦ 28 VDC, with a maximum current consumption of 75 mA. The compact Rectangular, front view design measures 26 mm in width, 74 mm in height, and 55 mm in depth, offering easy installation in tight spaces. Constructed with durable Aluminum housing, the front optics are made of Glass for enhanced protection. The sensor connects via an Connector M12 8 pin & M12 4 pin making it ideal for industrial applications requiring high precision. It's Time to get a Quote for your requirement of Baumer High Performance Distance Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
