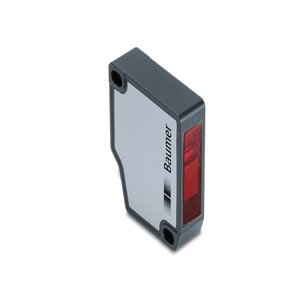

Baumer OM30-P0550.HV.YUN Ultrasonic Distance Sensor
The Baumer OM30-P0550.HV.YUN Laser Distance Sensor offers a Rectangular, front view design, 50 β¦ 550 mm scanning range, Analog and digital output, and Connector M8 4 pin connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OM30 Series.
| Measuring distance Sd | 50 β¦ 550 mm |
| Measuring range Mr | 500 mm |
| Output circuit | Analog and digital |
Baumer OM30-P0550.HV.YUN Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 50 β¦ 550 mm |
| Measuring range Mr | 500 mm |
| Adjustment | Teach-in: button / IO-Link |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 2 β¦ 86 Β΅m |
| Linearity error | Β± 0.23 % Mr |
| Beam type | Point |
| Temperature drift | 0,08 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Maximum pulse power | 2 mW |
| Pulse duration | 0.001 ... 1.2 ms |
| Pulse period | 0.2 ... 3.4 ms |
| Response delay | 0.4 ms |
| Measuring frequency | 5000 Hz |
| Voltage supply range +Vs | 12 β¦ 28 VDC |
| Current consumption max. (no load) | 50 mA |
| Output circuit | Analog and digital |
| Interface | IO-Link V1.1 |
| Baud rate | 230,4 kBaud (COM 3) |
| Width / diameter | 13.6 mm |
| Height / length | 49 mm |
| Depth | 40.3 mm |
| Design | Rectangular, front view |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M8 4 pin |
| Ambient light immunity | < 100 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Output signal | 0 β¦ 10 VDC / 0 β¦ 5 VDC |
| Load resistance | > 100 kOhm |
| Output current | 100 mA |
| Weight | 67 g |
Give Us a Call for Baumer Industrial Rectangular Laser Sensor OM30-P0550.HV.YUN part no: 11231083 at the lowest pricing. In-depth Technical Analysis of OM30-P0550.HV.YUN, 11231083 feature distance range of 30 β¦ 70 mm. This sensor utilizes Webserver, Ethernet TCP/IP with a LED green power-on indicator. The Line type is point-based, using a Pulsed red laser diode at a wavelength of 660 nm. The sensor operates within a voltage supply range of 15 β¦ 28 VDC, with a maximum current consumption of 75 mA. The compact Rectangular, front view design measures 26 mm in width, 74 mm in height, and 55 mm in depth, offering easy installation in tight spaces. Constructed with durable Aluminum housing, the front optics are made of Glass for enhanced protection. The sensor connects via an Connector M12 8 pin & M12 4 pin making it ideal for industrial applications requiring high precision. Elevate Your Project with a Quote for your requirement of Baumer Industrial Rectangular Laser Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
