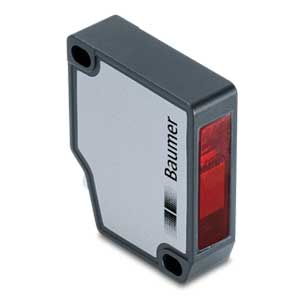

OM30-P0550.HV.YIN: 11231082 - Baumer Performance Miniature Distance Sensor
The Baumer OM30-P0550.HV.YIN is a high-accuracy Performance Miniature Distance Sensor engineered by Baumer to deliver reliable, short- to mid-range laser measurements in compact industrial setups.
| Brand | Baumer |
| Product Type | Laser Distance Sensor |
| Product | OM30-P0550.HV.YIN |
Baumer Performance Miniature Distance Sensor OM30-P0550.HV.YIN, 11231082 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 50 β¦ 550 mm |
| Measuring range Mr | 500 mm |
| Adjustment | Teach-in: button / IO-Link |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 2 β¦ 86 Β΅m |
| Linearity error | Β± 0.23 % Mr |
| Beam type | Point |
| Light source | Pulsed red laser diode |
| Wave length | 661 nm |
| Response time / release time | 0.4 ms |
| Voltage supply range +Vs | 12 β¦ 28 VDC |
| Current consumption max. (no load) | 50 mA |
| Output circuit | Analog and digital |
| Load resistance | < (+Vs - 9 V) / 0.02 A |
| Output current | 100 mA |
| Switching output | - |
| Interface | IO-Link V1.1 |
| Baud rate | 230,4 kBaud (COM 3) |
| Width / diameter | 13.6 mm |
| Height / length | 49 mm |
| Depth | 40.3 mm |
| Design | Rectangular, front view |
| Housing material | Die-cast zinc |
| Connection types | Connector M8 4 pin |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Storage temperature | -20 β¦ +60 Β°C |
The OM30-P0550.HV.YIN measures distances from 50 to 550 mm with a typical measuring range of 500 mm and a remarkable repeat accuracy of 2 to 86 Β΅m. Featuring both analog and digital outputs, it offers flexible integration into diverse PLC architectures. The sensor uses a pulsed red laser diode (661 nm) that emits a focused point beam, providing stable readings across different surface textures and colors.
Operating on a 12 β 28 V DC supply and drawing only 50 mA, it achieves a lightning-fast 0.4 ms response time. The teach-in button and IO-Link V1.1 interface (230.4 kBaud COM3) simplify setup and enable remote parameterization. LED indicators (green for power, yellow for output) provide clear visual feedback during operation. Its die-cast zinc housing (13.6 Γ 49 Γ 40.3 mm) with M8 4-pin connector and IP67 protection rating ensures long-term durability against dust and moisture. Designed for ambient temperatures between β10 Β°C and +50 Β°C, the Baumer OM30-P0550.HV.YIN delivers dependable results for precision automation environments.
The Baumer OM30-P0550.HV.YIN Performance Miniature Distance Sensor is widely adopted in robotics, machine-tool positioning, and automated quality inspection. Its miniature rectangular design enables installation in confined spaces on robotic arms, conveyors, and assembly machines where every millimeter counts.
Engineers value the OM30-P0550.HV.YIN for precise object detection, height measurement, and part alignment in electronics, packaging, and component-testing applications. The integrated IO-Link diagnostics facilitate real-time monitoring and predictive maintenance, reducing downtime. Whether used in OEM automation systems or industrial retrofits, this Baumer Laser Distance Sensor delivers accuracy, repeatability, and reliability that meet modern production demands.
For detailed technical documentation such as the OM30-P0550.HV.YIN datasheet, OM30-P0550.HV.YIN manual, or to request the latest OM30-P0550.HV.YIN price, IndMALL Automation offers verified access and expert assistance. Each Baumer OM30-P0550.HV.YIN (11231082) unit is sourced through authorized distributors to guarantee authenticity and manufacturer warranty. The Baumer Performance Miniature Distance Sensor series, including the OM30-P0550.HV.YIN, continues to set benchmarks in precision measurement and industrial reliability.
