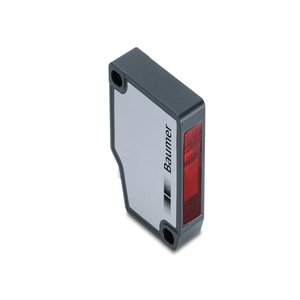

Baumer OM30-P0350.HV.YIN Ultrasonic Distance Sensor
The Baumer OM30-P0350.HV.YIN Laser Distance Sensor offers a Rectangular, front view design, 50 β¦ 350 mm scanning range, Analog and digital output, and Connector M8 4 pin connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OM30 Series.
| Measuring distance Sd | 50 β¦ 350 mm |
| Measuring range Mr | 300 mm |
| Output circuit | Analog and digital |
Baumer OM30-P0350.HV.YIN Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 50 β¦ 350 mm |
| Measuring range Mr | 300 mm |
| Adjustment | Teach-in: button / IO-Link |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 2 β¦ 30 Β΅m |
| Linearity error | Β± 0.1 % Mr , 50 ... 200 mm, Β± 0.15 % Mr , 50 ... 350 mm |
| Beam type | Point |
| Temperature drift | 0,05 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Maximum pulse power | 2 mW |
| Pulse duration | 0.001 ... 1.2 ms |
| Pulse period | 0.2 ... 3.4 ms |
| Response delay | 0.4 ms |
| Measuring frequency | 5000 Hz |
| Voltage supply range +Vs | 12 β¦ 28 VDC |
| Current consumption max. (no load) | 50 mA |
| Output circuit | Analog and digital |
| Interface | IO-Link V1.1 |
| Baud rate | 230,4 kBaud (COM 3) |
| Width / diameter | 13.6 mm |
| Height / length | 49 mm |
| Depth | 40.3 mm |
| Design | Rectangular, front view |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M8 4 pin |
| Ambient light immunity | < 100 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Output signal | 4 ... 20 mA / 2 ... 10 mA |
| Load resistance | < (+Vs - 9 V) / 0.02 A |
| Output current | 100 mA |
| Weight | 67 g |
Ask for the Pricing of Baumer 300 mm Measurement Laser Sensor OM30-P0350.HV.YIN part no: 11232071 at unbeatable prices. Detailed Specifications of OM30-P0350.HV.YIN, 11232071 feature distance range of 50 β¦ 350 mm. This sensor utilizes Teach-in: button / IO-Link with a LED green power-on indicator. The Point type is point-based, using a Pulsed red laser diode at a wavelength of 660 nm. The sensor operates within a voltage supply range of 12 β¦ 28 VDC, with a maximum current consumption of 50 mA. The compact Rectangular, front view design measures 13.6 mm in width, 49 mm in height, and 40.3 mm in depth, offering easy installation in tight spaces. Constructed with durable Die-cast zinc housing, the front optics are made of Glass for enhanced protection. The sensor connects via an Connector M8 4 pin making it ideal for industrial applications requiring high precision. Now's the Time to Secure a Quote for your requirement of Baumer 300 mm Measurement Laser Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
