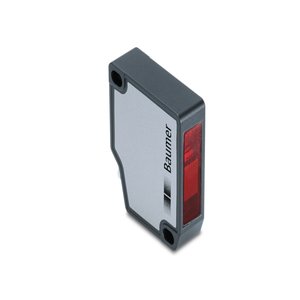

Baumer OM30-L0100.HV.YIN Ultrasonic Distance Sensor
The Baumer OM30-L0100.HV.YIN Laser Distance Sensor offers a Rectangular, front view design, 50 β¦ 100 mm scanning range, Analog and digital output, and Connector M8 4 pin connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OM30 Series.
| Measuring distance Sd | 50 β¦ 100 mm |
| Measuring range Mr | 50 mm |
| Output circuit | Analog and digital |
Baumer OM30-L0100.HV.YIN Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 50 β¦ 100 mm |
| Measuring range Mr | 50 mm |
| Adjustment | Teach-in: button / IO-Link |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 1 β¦ 3 Β΅m |
| Linearity error | Β± 0.08 % Mr |
| Beam type | Line |
| Temperature drift | 0,02 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Maximum pulse power | 1.2 mW |
| Pulse duration | 0.001 ... 1.7 ms |
| Pulse period | 0.2 ... 3.4 ms |
| Response delay | 0.4 ms |
| Measuring frequency | 5000 Hz |
| Voltage supply range +Vs | 12 β¦ 28 VDC |
| Current consumption max. (no load) | 50 mA |
| Output circuit | Analog and digital |
| Interface | IO-Link V1.1 |
| Baud rate | 230,4 kBaud (COM 3) |
| Width / diameter | 13.6 mm |
| Height / length | 49 mm |
| Depth | 40.3 mm |
| Design | Rectangular, front view |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M8 4 pin |
| Ambient light immunity | < 100 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Output signal | 4 ... 20 mA / 2 ... 10 mA |
| Load resistance | < (+Vs - 9 V) / 0.02 A |
| Output current | 100 mA |
| Weight | 67 g |
Send Your Inquiry for Baumer Rectangular Design Laser Sensor OM30-L0100.HV.YIN part no: 11232058 with cost-effective solutions. Essential Technical Specs of OM30-L0100.HV.YIN, 11232058 are distance range of 50 β¦ 100 mm. This sensor utilizes Teach-in: button / IO-Link with a LED green power-on indicator. The Line type is point-based, using a Pulsed red laser diode at a wavelength of 660 nm. The sensor operates within a voltage supply range of 12 β¦ 28 VDC, with a maximum current consumption of 50 mA. The compact Rectangular, front view design measures 13.6 mm in width, 49 mm in height, and 40.3 mm in depth, offering easy installation in tight spaces. Constructed with durable Die-cast zinc housing, the front optics are made of Glass for enhanced protection. The sensor connects via an Connector M8 4 pin making it ideal for industrial applications requiring high precision. Capture the Best Deal with a Quote for your requirement of Baumer Rectangular Design Laser Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
