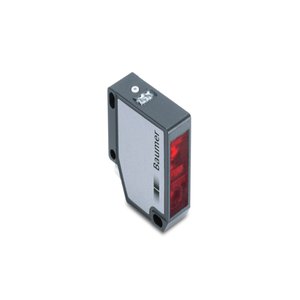

Baumer OM20-P0026.HH.YUN Ultrasonic Distance Sensor
The Baumer OM20-P0026.HH.YUN Laser Distance Sensor offers a Rectangular, front view design, 16 β¦ 26 mm scanning range, Analog and digital output, and Connector M8 4 pin connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OM20 Series.
| Measuring distance Sd | 16 β¦ 26 mm |
| Measuring range Mr | 10 mm |
| Output circuit | Analog and digital |
Baumer OM20-P0026.HH.YUN Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 16 β¦ 26 mm |
| Measuring range Mr | 10 mm |
| Adjustment | Teach-in: button / IO-Link |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 1 Β΅m |
| Linearity error | Β± 0.08 % Mr |
| Beam type | Point |
| Temperature drift | 0,01 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Maximum pulse power | 1 mW |
| Pulse duration | 0.001 ... 1 ms |
| Pulse period | 0.2 ... 3.4 ms |
| Response delay | 0.4 ms |
| Measuring frequency | 5000 Hz |
| Voltage supply range +Vs | 12 β¦ 28 VDC |
| Current consumption max. (no load) | 50 mA |
| Output circuit | Analog and digital |
| Interface | IO-Link V1.1 |
| Baud rate | 230,4 kBaud (COM 3) |
| Width / diameter | 13 mm |
| Height / length | 37 mm |
| Depth | 34.5 mm |
| Design | Rectangular, front view |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M8 4 pin |
| Ambient light immunity | < 100 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
| Output signal | 0 β¦ 10 VDC / 0 β¦ 5 VDC |
| Load resistance | > 100 kOhm |
| Output current | 100 mA |
| Weight | 41 g |
Mail Us for your needs in Baumer Laser Sensor For Precision Measurement OM20-P0026.HH.YUN part no: 11232063 with budget-friendly prices. The Main Technical Parameters of OM20-P0026.HH.YUN, 11232063 inludce distance range of 16 β¦ 120 mm. This sensor utilizes Teach-in: button / RS485 with a LED green power-on indicator. The Point type is point-based, using a Pulsed red laser diode at a wavelength of 660 nm. The sensor operates within a voltage supply range of 12 β¦ 28 VDC, with a maximum current consumption of 50 mA. The compact Rectangular, front view design measures 13 mm in width, 37 mm in height, and 34.5 mm in depth, offering easy installation in tight spaces. Constructed with durable Die-cast zinc housing, the front optics are made of Glass for enhanced protection. The sensor connects via an Connector M8 4 pin making it ideal for industrial applications requiring high precision. Customize Your Experience with a Quote for your requirement of Baumer Laser Sensor For Precision Measurement. Experience the difference with our competitive pricing and superior support over other Suppliers.
