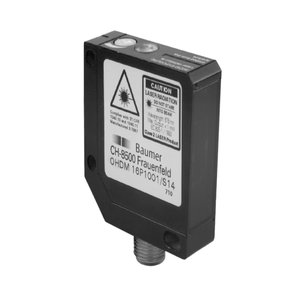

Baumer OHDM 16N5001/S14 Photoelectric Sensor
The Baumer OHDM 16N5001/S14 Photoelectric Sensor offers a Rectangular design, 25 β¦ 300 mm sensing distance, NPN output, and Connector M12 4 pin connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the Background Suppression type.
| Sensing distance Tw | 25 β¦ 300 mm |
| Output circuit | NPN |
| Connection types | Connector M12 4 pin |
Baumer OHDM 16N5001/S14 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Background suppression |
| Sensing distance Tw | 25 β¦ 300 mm |
| Output indicator | LED yellow |
| Sensing distance adjustment | Mechanical, 8 turn |
| Suppression of reciprocal influence | Yes |
| Light source | Pulsed red laser diode |
| Wave length | 650 nm |
| Response time / release time | < 0.6 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 35 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Width / diameter | 15.4 mm |
| Height / length | 50 mm |
| Depth | 50 mm |
| Design | Rectangular |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M12 4 pin |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +50 Β°C |
Talk to Our Engineer for Baumer Diffuse Sensor For Small Object Recognition OHDM 16N5001/S14 part no: 10241873 with exclusive offers. Core System Specifications of OHDM 16N5001/S14, 10241873 are Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 25 β¦ 300 mm. The sensor features Mechanical, 8 turn adjustment for flexible setup and utilizes an Pulsed red laser diode light source with a wavelength of 650 nm. It boasts a fast response time of less than < 0.6 ms, and operates within a voltage supply range of 10 β¦ 30 VDC, with a typical current consumption of 25 mA. The output function supports Light / dark operate with a NPN output circuit and can handle an output current of up to 200 mA. Measuring 15.4 mm in width, 50 mm in height, and 50 mm in depth, this compact Rectangular sensor is connected via a Connector M12 4 pin. Don't Miss Out on a Quote for your requirement of Baumer Diffuse Sensor For Small Object Recognition. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
