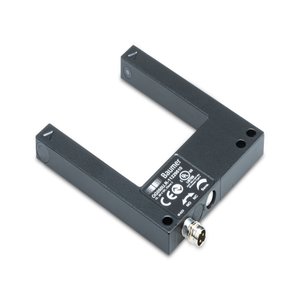

OG050U.R-GW1O.7WL: 11229510 - Baumer Photoelectric Fork Sensor For Precision
Technical Specifications of Baumer Photoelectric Fork Sensor For Precision OG050U.R-GW1O.7WL 11229510:
Spec | Value |
---|---|
Type | Through beam sensor |
Object Size | > 0.5 mm |
Output circuit | Push-pull / IO-Link |
Connection types | Connector M8, 3 pin |
Baumer Photoelectric Fork Sensor For Precision OG050U.R-GW1O.7WL, 11229510 Technical Specifications:
Specification | Value |
---|---|
Type | Through beam sensor |
Object size | > 0.5 mm |
Repeat accuracy | 0.04 mm |
Response time / release time | < 0.1 ms |
Hysteresis | < 0.25 mm |
Sensitivity adjustment | Potentiometer, 270°, IO-Link |
Light source | Pulsed red LED |
Wave length | 660 nm |
Light indicator | LED yellow |
IO-Link | Yes |
Interface | IO-Link V1.1 |
Baud rate | 38.4 kBaud (COM 2) |
Switching frequency | 5000 Hz , default, 1500 Hz, 250 Hz, 8000 Hz |
Voltage supply range +Vs | 10 … 30 VDC |
Current consumption max. (no load) | 30 mA |
Output function | Light / dark operate switchable |
Output circuit | Push-pull / IO-Link |
Voltage drop Vd | <2.8 VDC |
Output current | 200 mA |
Short circuit protection | Yes |
Reverse polarity protection | Yes |
Width / diameter | 70 mm |
Fork width Sb | 50 mm |
Height / length | 80 mm |
Penetration | 55 mm |
Depth | 10 mm |
Design | U profile |
Housing material | Die-cast zinc |
Connection types | Connector M8, 3 pin |
Operating temperature | -25 … +60 °C |
Protection class | IP 67 |
Get A Quote for Baumer Photoelectric Fork Sensor For Precision OG050U.R-GW1O.7WL part no: 11229510 at the best price. Here are the brief Technical Specifications of OG050U.R-GW1O.7WL, 11229510 are Through beam sensor Type designed for precise detection in industrial applications. It features a response time of less than < 0.1 ms and hysteresis under < 0.25 mm, powered by a Pulsed red LED with a wavelength of 660 nm. The sensor includes a LED yellow indicator and operates at switching frequencies of 5000 Hz , default, 1500 Hz, 250 Hz, 8000 Hz. It has a voltage supply range of 10 … 30 VDC and consumes a maximum of 30 mA when idle. The sensor supports both Light / dark operate switchable modes, utilizing a Push-pull / IO-Link output circuit with an output current of 200 mA. Designed with a U profile in Die-cast zinc, the housing measures 70 mm in width, 80 mm in height, and 10 mm in depth. It connects via an Connector M8, 3 pin. It's Time to get a Quote for your requirement of Baumer Photoelectric Fork Sensor For Precision. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
