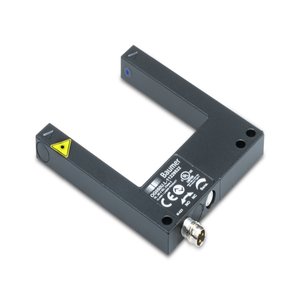

Baumer OG050U.L-GW1O.7WL Photoelectric Sensor
The Baumer OG050U.L-GW1O.7WL Photoelectric Sensor offers a U profile design, 70 mm diameter, 10 β¦ 30 VDC supply voltage, Push-pull / IO-Link output, and Connector M8, 3 pin connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the OG Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | OG050U.L-GW1O.7WL |
Baumer OG050U.L-GW1O.7WL Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Object size | > 0.1 mm |
| Repeat accuracy | 0.01 mm |
| Response time / release time | < 0.1 ms |
| Hysteresis | < 0.05 mm |
| Sensitivity adjustment | Potentiometer, 270Β°, IO-Link |
| Light source | Pulsed red laser diode |
| Wave length | 670 nm |
| Light indicator | LED yellow |
| IO-Link | Yes |
| Interface | IO-Link V1.1 |
| Switching frequency | 5000 Hz , default, 2000 Hz, 1000 Hz, 10000 Hz |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 30 mA |
| Output function | Light / dark operate switchable |
| Output circuit | Push-pull / IO-Link |
| Voltage drop Vd | <2.8 VDC |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 70 mm |
| Fork width Sb | 50 mm |
| Height / length | 80 mm |
| Penetration | 55 mm |
| Depth | 10 mm |
| Design | U profile |
| Housing material | Die-cast zinc |
| Connection types | Connector M8, 3 pin |
| Operating temperature | -25 β¦ +60 Β°C |
| Protection class | IP 67 |
Talk to Our Engineer for Baumer Sensor With IO-Link Interface OG050U.L-GW1O.7WL part no: 11229522 with exclusive offers. Core System Specifications of OG050U.L-GW1O.7WL, 11229522 are Through beam sensor Type designed for precise detection in industrial applications. It features a response time of less than < 0.1 ms and hysteresis under < 0.05 mm, powered by a Pulsed red laser diode with a wavelength of 670 nm. The sensor includes a LED yellow indicator and operates at switching frequencies of 5000 Hz , default, 2000 Hz, 1000 Hz, 10000 Hz. It has a voltage supply range of 10 β¦ 30 VDC and consumes a maximum of 30 mA when idle. The sensor supports both Light / dark operate switchable modes, utilizing a Push-pull / IO-Link output circuit with an output current of 200 mA. Designed with a U profile in Die-cast zinc, the housing measures 70 mm in width, 80 mm in height, and 10 mm in depth. It connects via an Connector M8, 3 pin. Don't Miss Out on a Quote for your requirement of Baumer Sensor With IO-Link Interface. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
