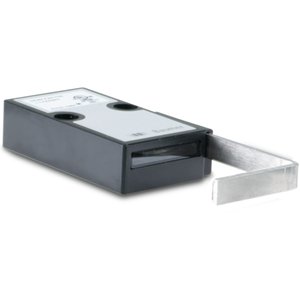

Baumer OE40.F24-AIN Edge Sensor
The Baumer OE40.F24-AIN Edge Sensor offers a 24 mm range, output, 12 … 28 VDC supply voltage, and connection. Manufactured by Baumer under the Baumer Edge Sensor category, this model belongs to the OE/OX Series.
| Brand | Baumer |
| Product Type | Edge Sensor |
| Model Number | OE40.F24-AIN |
Baumer OE40.F24-AIN Edge Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type | Edge, width |
| Version | Performance |
| Measuring range Mr | 24 mm |
| Measuring distance (to object) | < 40 mm |
| Adjustment | External Teach-in |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 7 µm |
| Linearity error | ± 0.8 % Mr (S = 0 ... 40 mm), ± 0.4 % Mr (S = 15 ... 40 mm) |
| Smallest object recognizable | 1 mm |
| Temperature drift | 0,01 % Sde/K |
| Light source | Pulsed infrared diode |
| Wave length | 850 nm |
| Response delay | < 0.6 ms |
| Measuring frequency | > 2000 Hz |
| Voltage supply range +Vs | 12 … 28 VDC |
| Current consumption max. (no load) | 100 mA |
| Output circuit | Analog |
| Output signal | 4 ... 20 mA |
| Load resistance | < (+Vs - 9 V) / 0.02 A |
| Output current | <100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 38.9 mm |
| Height / length | 113.2 mm |
| Depth | 16.8 mm |
| Design | Rectangular, front view |
| Housing material | Aluminum |
| Connection types | Connector M8 4 pin |
| Weight | 70 g |
| Ambient light immunity | < 60 kLux |
| Protection class | IP 67 |
| Operating temperature | 0 … +55 °C |
| Storage temperature | -20 … +60 °C |
Obtain a Quote for Baumer Long Range Edge Sensor OE40.F24-AIN Article No: 11722386 at economical prices. The Main Technical Parameters of OE40.F24-AIN, 11722386 feature LED green power-on indication and a LED yellow output indicator for clear, real-time system feedback. With a repeat accuracy of 7 µm and a temperature drift of only 0,01 % Sde/K, it ensures highly stable performance in varying industrial conditions. The voltage supply range is 12 … 28 VDC, and the device supports both Analog output circuits, delivering a reliable 4 ... 20 mA output signal. Compact and lightweight, the unit has a depth of 16.8 mm and weighs only 70 g, making it ideal for space-constrained installations. It also offers excellent ambient light immunity, tolerating levels up to < 60 kLux. Designed for resilience, the storage temperature range spans from -20 … +60 °C. Take the First Step with a Quote for your requirement of Long Range Edge Sensor OE40.F24-AIN.Our commitment to better pricing and exceptional support sets us apart from other Competitors.
