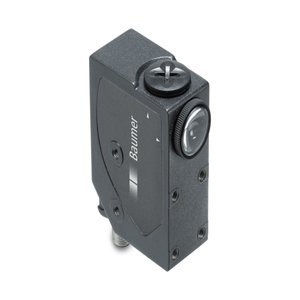

Baumer OC60J.CC-PW1B.7AF/E030 Photoelectric Sensor
The Baumer OC60J.CC-PW1B.7AF/E030 Photoelectric Sensor offers a Rectangular design, 9 mm Β±3 mm sensing distance, LED red / green / blue light source, PNP output, and Connector M12 5 pin, rotatable connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the Diffuse contrast sensor.
| Brand | Baumer |
| Product type | Photoelectric Sensor |
| Model Number | OC60J.CC-PW1B.7AF/E030 |
Baumer OC60J.CC-PW1B.7AF/E030 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing distance Tw | 9 mm Β±3 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensitivity adjustment | Teach-in |
| Distance to focus | 9 mm |
| Beam type | Line, horizontal |
| Beam height | 0.8 mm |
| Beam width | 4 mm |
| Light source | LED red / green / blue |
| Wave length | 465 nm, 520 nm, 630 nm |
| Response time / release time | < 0.01 ms |
| Voltage supply range +Vs | 10 VDC β¦ 30 VDC |
| Current consumption typ. | 50 mA (@ 24 VDC) |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP |
| Output current | 100 mA |
| Width / diameter | 31.9 mm |
| Height / length | 60.2 mm |
| Depth | 79 mm |
| Design | Rectangular |
| Housing material | Aluminum |
| Front (optics) | Glass |
| Connection types | Connector M12 5 pin, rotatable |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +55 Β°C |
| Storage temperature | -20 β¦ +70 Β°C |
Send Your Inquiry for Baumer Horizontal Line Photoelectric Sensor OC60J.CC-PW1B.7AF/E030 part no: 11224602 with cost-effective solutions. Essential Technical Specs of OC60J.CC-PW1B.7AF/E030, 11224602 are Rectangular Sensor, designed for precise detection with a sensing distance of 9 mm Β±3 mm. This sensor features a K8 output indicator and operates with a LED red / green / blue light source at wavelengths of 465 nm, 520 nm, 630 nm. The sensor ensures rapid response with a response time of less than < 0.01 ms, while the voltage supply range is 10 VDC β¦ 30 VDC, and the typical current consumption is 50 mA (@ 24 VDC). It supports Light / dark operate output functions with both PNP output circuits, handling up to 100 mA output current. The sensor measures 31.9 mm in width, 60.2 mm in height, and 79 mm in depth, housed in durable Aluminum with Glass front optics. The connection is made via a Connector M12 5 pin, rotatable. Capture the Best Deal with a Quote for your requirement of Baumer Horizontal Line Photoelectric Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
