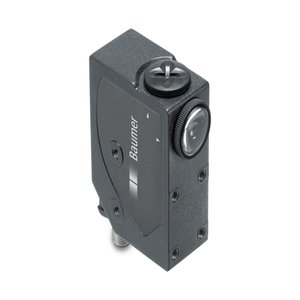

Baumer OC60.CU-DLMT.7AF Photoelectric Sensor
The Baumer OC60.CU-DLMT.7AF Photoelectric Sensor offers a Rectangular design, 10 mm β¦ 20 mm sensing distance, UV LED light source, PNP, NPN, Analog 0,75 ... 5,5 VDC output, and Connector M12 5 pin, rotatable connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the Diffuse contrast sensor.
| Brand | Baumer |
| Product type | Photoelectric Sensor |
| Model Number | OC60.CU-DLMT.7AF |
Baumer OC60.CU-DLMT.7AF Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing distance Tw | 10 mm β¦ 20 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensitivity adjustment | Teach-in |
| Distance to focus | 10 mm |
| Beam type | Line, vertical |
| Beam height | 8 mm |
| Beam width | 2 mm |
| Light source | UV LED |
| Wave length | 375 nm |
| Response time / release time | < 0.25 ms |
| Voltage supply range +Vs | 15 VDC β¦ 30 VDC |
| Current consumption typ. | 50 mA (@ 24 VDC) |
| Voltage drop Vd | <2 VDC |
| Output function | Light operate |
| Output circuit | PNP, NPN, Analog 0,75 ... 5,5 VDC |
| Output current | 100 mA |
| Width / diameter | 31.9 mm |
| Height / length | 60.2 mm |
| Depth | 79 mm |
| Design | Rectangular |
| Housing material | Aluminum |
| Front (optics) | Glass |
| Connection types | Connector M12 5 pin, rotatable |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +55 Β°C |
| Storage temperature | -20 β¦ +70 Β°C |
Reach Us by Email for Baumer M12 Connector Photoelectric Sensors OC60.CU-DLMT.7AF part no: 11224549 at Discounted Rates. Key Technical Features of OC60.CU-DLMT.7AF, 11224549 are Rectangular Sensor, designed for precise detection with a sensing distance of 10 mm β¦ 20 mm. This sensor features a K8 output indicator and operates with a UV LED light source at wavelengths of 375 nm. The sensor ensures rapid response with a response time of less than < 0.25 ms, while the voltage supply range is 15 VDC β¦ 30 VDC, and the typical current consumption is 50 mA (@ 24 VDC). It supports Light operate output functions with both PNP, NPN, Analog 0,75 ... 5,5 VDC output circuits, handling up to 100 mA output current. The sensor measures 31.9 mm in width, 60.2 mm in height, and 79 mm in depth, housed in durable Aluminum with Glass front optics. The connection is made via a Connector M12 5 pin, rotatable. Navigate Your Needs with a Quote for your requirement of Baumer M12 Connector Photoelectric Sensors. Our pricing and support are unrivaled, especially when compared to other Competitors.
