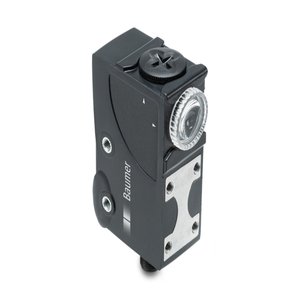

Baumer OC50.CC-QL1T.72O Photoelectric Sensor
The Baumer OC50.CC-QL1T.72O Photoelectric Sensor offers a Rectangular design, 9 mm Β±3 mm sensing distance, LED red / green / blue light source, PNP, NPN output, and Connector M12 4 pin connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the OC50 Series.
| Brand | Baumer |
| Product type | Photoelectric Sensor |
| Model Number | OC50.CC-QL1T.72O |
Baumer OC50.CC-QL1T.72O Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing distance Tw | 9 mm Β±3 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensitivity adjustment | Teach-in |
| Distance to focus | 9 mm |
| Beam type | Line, vertical |
| Beam height | 1.5 mm |
| Beam width | 5 mm |
| Light source | LED red / green / blue |
| Wave length | 465 nm, 520 nm, 630 nm |
| Response time / release time | < 0.033 ms |
| Voltage supply range +Vs | 10 VDC β¦ 30 VDC |
| Current consumption typ. | 50 mA (@ 24 VDC) |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP, NPN |
| Output current | 100 mA |
| Width / diameter | 31 mm |
| Height / length | 53 mm |
| Depth | 80.1 mm |
| Design | Rectangular |
| Housing material | Plastic (ABS) |
| Front (optics) | PMMA |
| Connection types | Connector M12 4 pin |
| Protection class | IP 67 |
| Operating temperature | -10 β¦ +55 Β°C |
| Storage temperature | -20 β¦ +70 Β°C |
Give Us a Call for Baumer Diffuse Contrast Photoeelctric Sensors OC50.CC-QL1T.72O part no: 11224569 at the lowest pricing. In-depth Technical Analysis of OC50.CC-QL1T.72O, 11224569 feature Rectangular Sensor, designed for precise detection with a sensing distance of 9 mm Β±3 mm. This sensor features a K8 output indicator and operates with a LED red / green / blue light source at wavelengths of 465 nm, 520 nm, 630 nm. The sensor ensures rapid response with a response time of less than < 0.033 ms, while the voltage supply range is 10 VDC β¦ 30 VDC, and the typical current consumption is 50 mA (@ 24 VDC). It supports Light / dark operate output functions with both PNP, NPN output circuits, handling up to 100 mA output current. The sensor measures 31 mm in width, 53 mm in height, and 80.1 mm in depth, housed in durable Plastic (ABS) with PMMA front optics. The connection is made via a Connector M12 4 pin. Elevate Your Project with a Quote for your requirement of Baumer Diffuse Contrast Photoeelctric Sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
