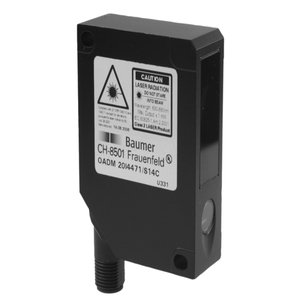

Baumer OADM 20I5560/S14C Ultrasonic Distance Sensor
The Baumer OADM 20I5560/S14C Laser Distance Sensor offers a Rectangular design, 30 β¦ 130 mm scanning range, Analog output, and Connector M12 5 pin, rotatable connection. Manufactured by Baumer under the Baumer Laser Distance Sensor category, this model belongs to the OADM Series.
| Measuring distance Sd | 30 β¦ 130 mm |
| Output circuit | Analog |
Baumer OADM 20I5560/S14C Ultrasonic Distance Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Measuring distance Sd | 30 β¦ 130 mm |
| Adjustment | No |
| Power on indication | LED green |
| Linearity error | Β± 0.15 β¦ 0.22 mm |
| Beam type | Line |
| Temperature drift | < 0,03 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 650 nm |
| Voltage supply range +Vs | 12 β¦ 28 VDC |
| Current consumption max. (no load) | 100 mA |
| Output circuit | Analog |
| Width / diameter | 20.6 mm |
| Height / length | 65 mm |
| Depth | 50 mm |
| Design | Rectangular |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M12 5 pin, rotatable |
| Protection class | IP 67 |
| Operating temperature | 0 β¦ +50 Β°C |
| Output signal | 4 ... 20 mA |
Please speak to our Technical Engineer for Baumer Line Beam Type Distance Sensor OADM 20I5560/S14C part no: 11164059 at attractive prices. Technical Specs Summary of OADM 20I5560/S14C, 11164059 includes distance range of 50 β¦ 250 mm. This sensor utilizes No with a LED green power-on indicator. The Line type is point-based, using a Pulsed red laser diode at a wavelength of 650 nm. The sensor operates within a voltage supply range of 12 β¦ 28 VDC, with a maximum current consumption of 100 mA. The compact Rectangular design measures 20.6 mm in width, 65 mm in height, and 50 mm in depth, offering easy installation in tight spaces. Constructed with durable Die-cast zinc housing, the front optics are made of Glass for enhanced protection. The sensor connects via an Connector M12 5 pin, rotatable making it ideal for industrial applications requiring high precision. Match Your Needs with a Quote for your requirement of Baumer Line Beam Type Distance Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
