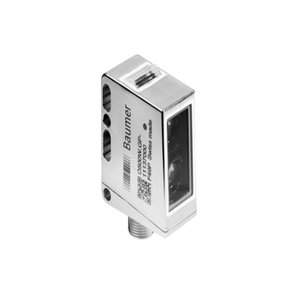

Baumer O500W.SP-GW1J.PVO/H002 Photoelectric Sensor
The Banner O500W.SP-GW1J.PVO/H002 Photoelectric Sensor offers a 20.2 mm diameter, Pulsed PinPoint LED light source, Push-pull output circuit, and Connector M12 4 pin connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Banner |
| Product Type | Photoelectric Sensor |
| Model Number | O500W.SP-GW1J.PVO/H002 |
Baumer O500W.SP-GW1J.PVO/H002 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Light barrier |
| Version | Standard object detection |
| Background position Sde | 60 β¦ 600 mm |
| Scanning range Sa | 90% ... 85% Sde |
| Power on indication | LED green |
| Sensing distance adjustment | Teach-in and IO-Link |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1Β° |
| Light source | Pulsed PinPoint LED |
| Wave length | 630 nm |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Width / diameter | 20.2 mm |
| Height / length | 47.9 mm |
| Depth | 37.7 mm |
| Design | Rectangular |
| Housing material | Stainless steel 1.4404 (V4A) |
| Front (optics) | PMMA |
| Connection types | Connector M12 4 pin |
| Protection class | IP 68/69K & proTect+ |
| Operating temperature | -25 β¦ +60 Β°C |
Call us for Baumer Sensor With Background Detection O500W.SP-GW1J.PVO/H002 part no: 11137002 at the best rates. Technical Attributes of O500W.SP-GW1J.PVO/H002, 11137002 are Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 90% ... 85% Sde with adjustable sensing distance Teach-in and IO-Link. It operates using a Pulsed PinPoint LED light source with a wave length of 630 nm. The voltage supply range is 10 β¦ 30 VDC, with a current consumption of 40 mA. The voltage drop (Vd) is less than <3 VDC, with Light / dark operate output functions. The output circuit is Push-pull, and the output current is rated at 100 mA. With a width of 20.2 mm and a height of 47.9 mm, the housing is made of durable Stainless steel 1.4404 (V4A). This sensor is equipped with a Connector M12 4 pin connection. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Sensor With Background Detection. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
