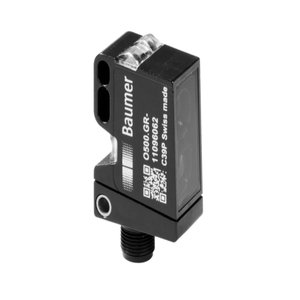

Baumer O500.ZR-GW1T.72O Photoelectric Sensor
The Banner O500.ZR-GW1T.72O Photoelectric Sensor offers a 18 mm diameter, 20 β¦ 600 mm sensing distance, Push-pull output circuit, and Connector M12 4 pin connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O300 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | O500.ZR-GW1T.72O |
Baumer O500.ZR-GW1T.72O Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | 20 β¦ 600 mm |
| Power on indication | LED green |
| Light indicator | LED yellow |
| Sensing distance adjustment | qTeach |
| Alignment optical axis | < 1Β° |
| Light source | Pulsed red LED |
| Wave length | 630 nm |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M12 4 pin |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +60 Β°C |
Talk to Our Engineer for Baumer Sensor For Intensity Detection In Industry O500.ZR-GW1T.72O part no: 11128018 with exclusive offers. Core System Specifications of O500.ZR-GW1T.72O, 11128018 are Intensity difference Sensor, engineered for precise detection with a sensing distance of 20 β¦ 600 mm. The sensor utilizes a Pulsed red LED with a wavelength of 630 nm, ensuring accurate and rapid response times of less than < 1 ms. It operates within a voltage supply range of 10 β¦ 30 VDC, offering Light / dark operate functionality with a Push-pull output circuit capable of handling up to 100 mA of output current. Measuring 18 mm in width and 45 mm in height, the compact Rectangular design is housed in durable Plastic (ASA, PMMA) materials. The connection is made via a Connector M12 4 pin. Don't Miss Out on a Quote for your requirement of Baumer Sensor For Intensity Detection In Industry. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
