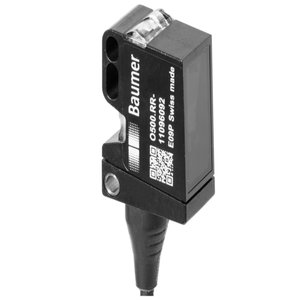

Baumer O500.SP-NV1T.72CU/T003 Photoelectric Sensor
The Banner O500.SP-NV1T.72CU/T003 Photoelectric Sensor offers a 18 mm diameter, Pulsed PinPoint LED light source, NPN complementary output circuit, and Cable 4 pin, 2 m connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Banner |
| Product Type | Photoelectric Sensor |
| Model Number | O500.SP-NV1T.72CU/T003 |
Baumer O500.SP-NV1T.72CU/T003 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Light barrier |
| Version | Standard object detection |
| Background position Sde | 60 β¦ 600 mm |
| Scanning range Sa | 90% ... 85% Sde |
| Power on indication | LED green |
| Sensing distance adjustment | qTeach / 1-Step Teach-in |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1Β° |
| Light source | Pulsed PinPoint LED |
| Wave length | 630 nm |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN complementary |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +60 Β°C |
Get A Quote for Baumer 600 mm Background Position Sensor O500.SP-NV1T.72CU/T003 part no: 11135865 at the best price. Here are the brief Technical Specifications of O500.SP-NV1T.72CU/T003, 11135865 are Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 90% ... 85% Sde with adjustable sensing distance qTeach / 1-Step Teach-in. It operates using a Pulsed PinPoint LED light source with a wave length of 630 nm. The voltage supply range is 10 β¦ 30 VDC, with a current consumption of 40 mA. The voltage drop (Vd) is less than <3 VDC, with Light / dark operate output functions. The output circuit is NPN complementary, and the output current is rated at 100 mA. With a width of 18 mm and a height of 45 mm, the housing is made of durable Plastic (ASA, PMMA). This sensor is equipped with a Cable 4 pin, 2 m connection. It's Time to get a Quote for your requirement of Baumer 600 mm Background Position Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
