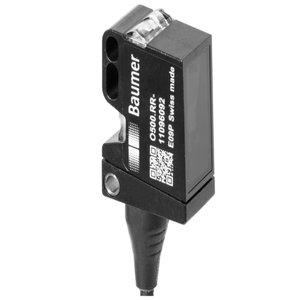

Baumer O500.RP-PV1T.72CU Photoelectric Sensor
The Baumer O500.RP-PV1T.72CU Photoelectric Sensor offers a Rectangular design, 8 m nominal range, 10 โฆ 30 VDC supply voltage, PNP complementary output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Product | O500.RP-PV1T.72CU |
Baumer O500.RP-PV1T.72CU Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Type | Retro-reflective sensor |
| Light source | Pulsed PinPoint LED |
| Actual range Sb | 7.5 m |
| Nominal range Sn | 8 m |
| Polarization filter | Yes |
| Power on indication | LED green |
| Sensitivity adjustment | qTeach |
| Wave length | 630 nm |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1ยฐ |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 โฆ 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Operating temperature | -25 โฆ +60 ยฐC |
| Protection class | IP 67 |
Obtain a Quote for Baumer Industrial Sensor With Response Time Optimization O500.RP-PV1T.72CU part no: 11096099 at economical prices. Specifications Overview for O500.RP-PV1T.72CU, 11096099 reveals Retro-reflective sensor designed for precision detection with an actual range of 7.5 m and a nominal range of 8 m. The sensor features a Pulsed PinPoint LED light source with a wavelength of 630 nm, ensuring accurate performance with a response time of less than < 0.49 ms. It operates within a voltage supply range of 10 โฆ 30 VDC, supporting both Light / dark operate functions through a PNP complementary output circuit capable of handling up to 100 mA of output current. Measuring 18 mm in width and 45 mm in height, the sensorโs compact Rectangular design is housed in durable Plastic (ASA, PMMA) materials, making it ideal for industrial environments. The sensor connects via a Cable 4 pin, 2 m for reliable integration. Take the First Step with a Quote for your requirement of Baumer Industrial Sensor With Response Time Optimization. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
