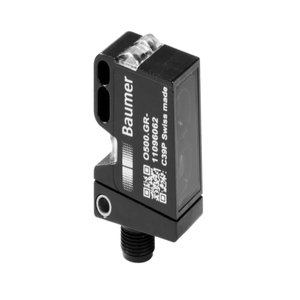

O500.GR-GW1T.72CU: 11096063 - Baumer Photoelectric Sensor With 100 mA Output
Technical Specifications of Baumer Photoelectric Sensor With 100 mA Output O500.GR-GW1T.72CU 11096063:
Spec | Value |
---|---|
Sensing distance Tw | 60 … 550 mm |
Sensing range Tb | 30 … 600 mm |
Output circuit | Push-pull |
Connection types | Cable 4 pin, 2 m |
Baumer Photoelectric Sensor With 100 mA Output O500.GR-GW1T.72CU, 11096063 Technical Specifications:
Specification | Value |
---|---|
Type | Background suppression |
Sensing distance Tw | 60 … 550 mm |
Sensing range Tb | 30 … 600 mm |
Power on indication | LED green |
Sensing distance adjustment | qTeach |
Suppression of reciprocal influence | Yes |
Alignment optical axis | < 1° |
Light source | Pulsed red LED |
Wave length | 630 nm |
Response time / release time | < 1 ms |
Voltage supply range +Vs | 10 … 30 VDC |
Current consumption max. (no load) | 40 mA |
Current consumption typ. | 30 mA |
Voltage drop Vd | <3 VDC |
Output function | Light / dark operate |
Output circuit | Push-pull |
Output current | 100 mA |
Short circuit protection | Yes |
Width / diameter | 18 mm |
Height / length | 45 mm |
Depth | 32 mm |
Design | Rectangular |
Housing material | Plastic (ASA, PMMA) |
Front (optics) | PMMA |
Connection types | Cable 4 pin, 2 m |
Protection class | IP 67 |
Operating temperature | -25 … +60 °C |
Light indicator | LED yellow |
Ask for the Pricing of Baumer Photoelectric Sensor With 100 mA Output O500.GR-GW1T.72CU part no: 11096063 at unbeatable prices. Detailed Specifications of O500.GR-GW1T.72CU, 11096063 feature Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 60 … 550 mm. The sensor features qTeach adjustment for flexible setup and utilizes an Pulsed red LED light source with a wavelength of 630 nm. It boasts a fast response time of less than < 1 ms, and operates within a voltage supply range of 10 … 30 VDC, with a typical current consumption of 30 mA. The output function supports Light / dark operate with a Push-pull output circuit and can handle an output current of up to 100 mA. Measuring 18 mm in width, 45 mm in height, and 32 mm in depth, this compact Rectangular sensor is connected via a Cable 4 pin, 2 m. Now's the Time to Secure a Quote for your requirement of Baumer Photoelectric Sensor With 100 mA Output. We're committed to offering more favorable pricing and more responsive support than other Traders.
