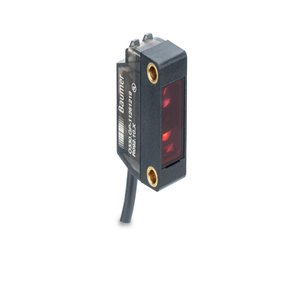

Baumer O330.RP-PDPVZ.72OV/0030_H006 Photoelectric Sensor
The Baumer O330.RP-PDPVZ.72OV/0030_H006 Photoelectric Sensor offers a Rectangular design, 6 m nominal range, 10 β¦ 30 VDC supply voltage, PNP complementary output, and Flylead connector M12, L=300 mm connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Product | O330.RP-PDPVZ.72OV/0030_H006 |
Baumer O330.RP-PDPVZ.72OV/0030_H006 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Retro-reflective sensor |
| Light source | Pulsed PinPoint LED |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Polarization filter | Yes |
| Alignment / soiled lens indicator | Flashing output indicator |
| Output indicator | LED yellow |
| Power on indication | LED green |
| Wave length | 634 nm |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1,5Β° |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 50 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | 100 mA |
| Width / diameter | 11 mm |
| Height / length | 32 mm |
| Depth | 21 mm |
| Design | Rectangular |
| Mechanical mounting | Threaded sleeves M3 (brass) |
| Housing material | Plastic (ABS, ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M12, L=300 mm |
| Cable characteristics | PVC / PVC 4 x 0.14 mmΒ² |
| Operating temperature | -25 β¦ +55 Β°C |
| Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer Retro-Reflective Sensor With M12 Connector O330.RP-PDPVZ.72OV/0030_H006 part no: 11270658 at attractive prices. Technical Specs Summary of O330.RP-PDPVZ.72OV/0030_H006, 11270658 includes Retro-reflective sensor designed for precision detection with an actual range of 5 m and a nominal range of 6 m. The sensor features a Pulsed PinPoint LED light source with a wavelength of 634 nm, ensuring accurate performance with a response time of less than < 0.5 ms. It operates within a voltage supply range of 10 β¦ 30 VDC, supporting both Light / dark operate functions through a PNP complementary output circuit capable of handling up to 100 mA of output current. Measuring 11 mm in width and 32 mm in height, the sensorβs compact Rectangular design is housed in durable Plastic (ABS, ASA, PMMA) materials, making it ideal for industrial environments. The sensor connects via a Flylead connector M12, L=300 mm for reliable integration. Match Your Needs with a Quote for your requirement of Baumer Retro-Reflective Sensor With M12 Connector. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
