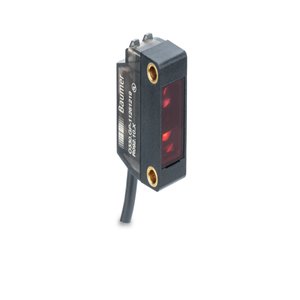

Baumer O330.GP-NLNVT.72ZV/E022-H006-T003 Photoelectric Sensor
The Baumer O330.GP-NLNVT.72ZV/E022-H006-T003 Photoelectric Sensor offers a Rectangular design, 20 β¦ 250 mm sensing distance, NPN complementary output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the Background Suppression type.
| Sensing distance Tw | 20 β¦ 250 mm |
| Sensing range Tb | 8 β¦ 275 mm |
| Output circuit | NPN complementary |
| Connection types | Cable 4 pin, 2 m |
Baumer O330.GP-NLNVT.72ZV/E022-H006-T003 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Background suppression |
| Sensing distance Tw | 20 β¦ 250 mm |
| Sensing range Tb | 8 β¦ 275 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensing distance adjustment | qTeach / 1-Step Teach-in |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1,5Β° |
| Light source | Pulsed PinPoint LED |
| Wave length | 634 nm |
| Response time / release time | < 2.5 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 50 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN complementary |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Width / diameter | 11 mm |
| Height / length | 32 mm |
| Depth | 21 mm |
| Design | Rectangular |
| Mechanical mounting | Threaded sleeves M3 (brass) |
| Housing material | Plastic (ABS, ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Cable characteristics | PVC / PVC 4 x 0.14 mmΒ² |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +55 Β°C |
Talk to Our Engineer for Baumer Sensor For Diverse Operating Temperatures O330.GP-NLNVT.72ZV/E022-H006-T003 part no: 11261228 with exclusive offers. Core System Specifications of O330.GP-NLNVT.72ZV/E022-H006-T003, 11261228 are Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 20 β¦ 250 mm. The sensor features qTeach / 1-Step Teach-in adjustment for flexible setup and utilizes an Pulsed PinPoint LED light source with a wavelength of 634 nm. It boasts a fast response time of less than < 2.5 ms, and operates within a voltage supply range of 10 β¦ 30 VDC, with a typical current consumption of 25 mA. The output function supports Light / dark operate with a NPN complementary output circuit and can handle an output current of up to 100 mA. Measuring 11 mm in width, 32 mm in height, and 21 mm in depth, this compact Rectangular sensor is connected via a Cable 4 pin, 2 m. Don't Miss Out on a Quote for your requirement of Baumer Sensor For Diverse Operating Temperatures. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
