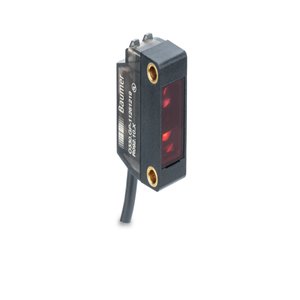

Baumer O330.EP-PDPVZ.72OV/0030-H006 Photoelectric Sensor
The Baumer O330.EP-PDPVZ.72OV/0030-H006 Photoelectric Sensor offers a Rectangular design, 12 m nominal range, Receiver, PNP complementary output, and Flylead connector M12, L=300 mm connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | O330.EP-PDPVZ.72OV/0030-H006 |
Baumer O330.EP-PDPVZ.72OV/0030-H006 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 10 m |
| Nominal range Sn | 12 m |
| Alignment / soiled lens indicator | Flashing output indicator |
| Output indicator | LED yellow |
| Power on indication | LED green |
| Sensitivity adjustment | No |
| Suppression of reciprocal influence | Yes |
| Response time / release time | < 0.8 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 50 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 11 mm |
| Height / length | 32 mm |
| Depth | 21 mm |
| Design | Rectangular |
| Mechanical mounting | Threaded sleeves M3 (brass) |
| Housing material | Plastic (ABS, ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M12, L=300 mm |
| Cable characteristics | PVC / PVC 4 x 0.14 mmΒ² |
| Operating temperature | -25 β¦ +55 Β°C |
| Protection class | IP 67 |
Call us for Baumer M12 Connector Photo Sensor O330.EP-PDPVZ.72OV/0030-H006 part no: 11270672 at the best rates. Technical Attributes of O330.EP-PDPVZ.72OV/0030-H006, 11270672 are Through beam sensor Model Type designed for precise object detection with a nominal range of 12 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 50 mA and a typical consumption of 25 mA. The compact Rectangular design features dimensions of 11 mm in width, 32 mm in height, and 21 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (ABS, ASA, PMMA) offering robustness for demanding applications. The sensor connects via a Flylead connector M12, L=300 mm making it suitable for seamless integration into your system. With a Receiver. Unlock Exclusive Pricing with a Quote for your requirement of Baumer M12 Connector Photo Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
