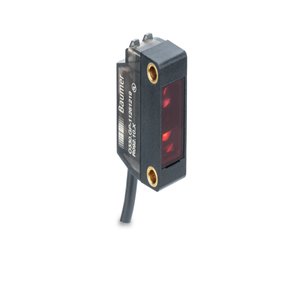

Baumer O330.EP-NDNVZ.72ZV/H006 Photoelectric Sensor
The Baumer O330.EP-NDNVZ.72ZV/H006 Photoelectric Sensor offers a Rectangular design, 12 m nominal range, Receiver, NPN complementary output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | O330.EP-NDNVZ.72ZV/H006 |
Baumer O330.EP-NDNVZ.72ZV/H006 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 10 m |
| Nominal range Sn | 12 m |
| Alignment / soiled lens indicator | Flashing output indicator |
| Output indicator | LED yellow |
| Power on indication | LED green |
| Sensitivity adjustment | No |
| Suppression of reciprocal influence | Yes |
| Response time / release time | < 0.8 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 50 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN complementary |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 11 mm |
| Height / length | 32 mm |
| Depth | 21 mm |
| Design | Rectangular |
| Mechanical mounting | Threaded sleeves M3 (brass) |
| Housing material | Plastic (ABS, ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Cable characteristics | PVC / PVC 4 x 0.14 mmΒ² |
| Operating temperature | -25 β¦ +55 Β°C |
| Protection class | IP 67 |
Talk to Our Engineer for Baumer NPN Complementary Sensor O330.EP-NDNVZ.72ZV/H006 part no: 11261246 with exclusive offers. Core System Specifications of O330.EP-NDNVZ.72ZV/H006, 11261246 are Through beam sensor Model Type designed for precise object detection with a nominal range of 12 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 50 mA and a typical consumption of 25 mA. The compact Rectangular design features dimensions of 11 mm in width, 32 mm in height, and 21 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (ABS, ASA, PMMA) offering robustness for demanding applications. The sensor connects via a Cable 4 pin, 2 m making it suitable for seamless integration into your system. With a Receiver. Don't Miss Out on a Quote for your requirement of Baumer NPN Complementary Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
