Before procurement teams confirm O300H-GP-GW1J-PVNV, they typically review Sick Diffuse Sensor, Baumer Proximity Sensor and Baumer O200 Tr Zzzx 72Nv H006 to double-check performance ratings, stock availability, and supplier credibility carefully.

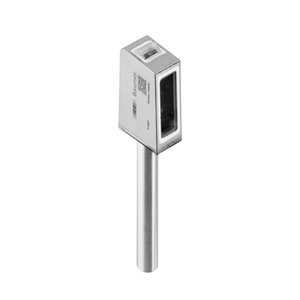

Baumer O300H.GP-GW1J.PVNV Photoelectric Sensor
The Baumer O300H.GP-GW1J.PVNV Photoelectric Sensor offers a Rectangular design, 30 β¦ 200 mm sensing distance, Push-pull output, and Flylead connector M8, L=200 mm connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the Background Suppression type.
| Sensing distance Tw | 30 β¦ 200 mm |
| Sensing range Tb | 15 β¦ 200 mm |
| Output circuit | Push-pull |
| Connection types | Flylead connector M8, L=200 mm |
Baumer O300H.GP-GW1J.PVNV Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Background suppression |
| Sensing distance Tw | 30 β¦ 200 mm |
| Sensing range Tb | 15 β¦ 200 mm |
| Power on indication | LED green |
| Sensing distance adjustment | Teach-in and IO-Link |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 2Β° |
| Light source | Pulsed PinPoint LED |
| Wave length | 630 nm |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 45 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Width / diameter | 16.5 mm |
| Height / length | 34.6 mm |
| Depth | 28.7 mm |
| Design | Rectangular |
| Housing material | Stainless steel 1.4404 (V4A) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M8, L=200 mm |
| Protection class | IP 68/69K & proTect+ |
| Operating temperature | -25 β¦ +60 Β°C |
| Light indicator | LED yellow |
Reach Us by Email for Baumer Sensing Sensor For Automated Machines O300H.GP-GW1J.PVNV part no: 11157157 at Discounted Rates. Key Technical Features of O300H.GP-GW1J.PVNV, 11157157 are Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 30 β¦ 200 mm. The sensor features Teach-in and IO-Link adjustment for flexible setup and utilizes an Pulsed PinPoint LED light source with a wavelength of 630 nm. It boasts a fast response time of less than < 0.49 ms, and operates within a voltage supply range of 10 β¦ 30 VDC, with a typical current consumption of 30 mA. The output function supports Light / dark operate with a Push-pull output circuit and can handle an output current of up to 100 mA. Measuring 16.5 mm in width, 34.6 mm in height, and 28.7 mm in depth, this compact Rectangular sensor is connected via a Flylead connector M8, L=200 mm. Navigate Your Needs with a Quote for your requirement of Baumer Sensing Sensor For Automated Machines. Our pricing and support are unrivaled, especially when compared to other Competitors.
