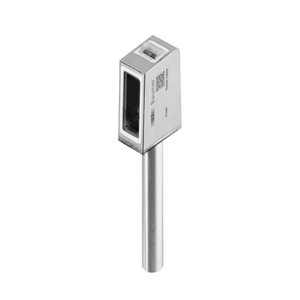

Baumer O300H.EL-GW1B.PVNV Photoelectric Sensor
The Baumer O300H.EL-GW1B.PVNV Photoelectric Sensor offers a Rectangular design, 75 m nominal range, Receiver, Push-pull output, and Flylead connector M8, L=200 mm connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | O300H.EL-GW1B.PVNV |
Baumer O300H.EL-GW1B.PVNV Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 40 m |
| Nominal range Sn | 75 m |
| Alignment / soiled lens indicator | Flashing light indicator |
| Power on indication | LED green |
| Sensitivity adjustment | Teach-in: remote |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 16.5 mm |
| Height / length | 34.6 mm |
| Depth | 28.7 mm |
| Design | Rectangular |
| Housing material | Stainless steel 1.4404 (V4A) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M8, L=200 mm |
| Operating temperature | -25 β¦ +60 Β°C |
| Protection class | IP 68/69K & proTect+ |
| Light indicator | LED yellow |
Talk to Our Engineer for Baumer Through-Beam Photoelectric Sensor O300H.EL-GW1B.PVNV part no: 11181084 with exclusive offers. Core System Specifications of O300H.EL-GW1B.PVNV, 11181084 are Through beam sensor Model Type designed for precise object detection with a nominal range of 75 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 40 mA and a typical consumption of 30 mA. The compact Rectangular design features dimensions of 16.5 mm in width, 34.6 mm in height, and 28.7 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Stainless steel 1.4404 (V4A) offering robustness for demanding applications. The sensor connects via a Flylead connector M8, L=200 mm making it suitable for seamless integration into your system. With a Receiver. Don't Miss Out on a Quote for your requirement of Baumer Through-Beam Photoelectric Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
