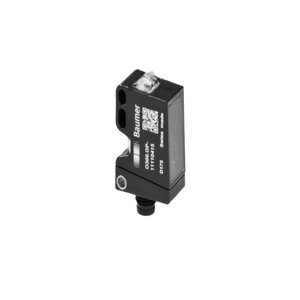

Baumer O300.RP-NV1T.72N Photoelectric Sensor
The Baumer O300.RP-NV1T.72N Photoelectric Sensor offers a Rectangular design, 6 m nominal range, 10 β¦ 30 VDC supply voltage, NPN complementary output, and Connector M8 4 pin connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Product | O300.RP-NV1T.72N |
Baumer O300.RP-NV1T.72N Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Retro-reflective sensor |
| Light source | Pulsed PinPoint LED |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Polarization filter | Yes |
| Power on indication | LED green |
| Sensitivity adjustment | qTeach |
| Wave length | 630 nm |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 2Β° |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 35 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN complementary |
| Output current | 100 mA |
| Width / diameter | 12.9 mm |
| Height / length | 32.3 mm |
| Depth | 23 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 β¦ +60 Β°C |
| Protection class | IP 67 |
Please speak to our Technical Engineer for Baumer Photoelectric Sensor With NPN Output O300.RP-NV1T.72N part no: 11110447 at attractive prices. Technical Specs Summary of O300.RP-NV1T.72N, 11110447 includes Retro-reflective sensor designed for precision detection with an actual range of 5 m and a nominal range of 6 m. The sensor features a Pulsed PinPoint LED light source with a wavelength of 630 nm, ensuring accurate performance with a response time of less than < 0.49 ms. It operates within a voltage supply range of 10 β¦ 30 VDC, supporting both Light / dark operate functions through a NPN complementary output circuit capable of handling up to 100 mA of output current. Measuring 12.9 mm in width and 32.3 mm in height, the sensorβs compact Rectangular design is housed in durable Plastic (ASA, PMMA) materials, making it ideal for industrial environments. The sensor connects via a Connector M8 4 pin for reliable integration. Match Your Needs with a Quote for your requirement of Baumer Photoelectric Sensor With NPN Output. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
