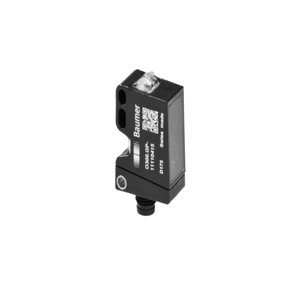

Baumer O300.GP-PV1T.72CU/T003 Photoelectric Sensor
The Baumer O300.GP-PV1T.72CU/T003 Photoelectric Sensor offers a Rectangular design, 30 β¦ 200 mm sensing distance, PNP complementary output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the Background Suppression type.
| Sensing distance Tw | 30 β¦ 200 mm |
| Sensing range Tb | 15 β¦ 200 mm |
| Output circuit | PNP complementary |
| Connection types | Cable 4 pin, 2 m |
Baumer O300.GP-PV1T.72CU/T003 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Background suppression |
| Sensing distance Tw | 30 β¦ 200 mm |
| Sensing range Tb | 15 β¦ 200 mm |
| Power on indication | LED green |
| Sensing distance adjustment | qTeach / 1-Step Teach-in |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 2Β° |
| Light source | Pulsed PinPoint LED |
| Wave length | 630 nm |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 45 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Width / diameter | 12.9 mm |
| Height / length | 32.3 mm |
| Depth | 23 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +60 Β°C |
| Light indicator | LED yellow |
Get A Quote for Baumer Sensor With Background Suppression O300.GP-PV1T.72CU/T003 part no: 11135829 at the best price. Here are the brief Technical Specifications of O300.GP-PV1T.72CU/T003, 11135829 are Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 30 β¦ 200 mm. The sensor features qTeach / 1-Step Teach-in adjustment for flexible setup and utilizes an Pulsed PinPoint LED light source with a wavelength of 630 nm. It boasts a fast response time of less than < 0.49 ms, and operates within a voltage supply range of 10 β¦ 30 VDC, with a typical current consumption of 30 mA. The output function supports Light / dark operate with a PNP complementary output circuit and can handle an output current of up to 100 mA. Measuring 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, this compact Rectangular sensor is connected via a Cable 4 pin, 2 m. It's Time to get a Quote for your requirement of Baumer Sensor With Background Suppression. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
