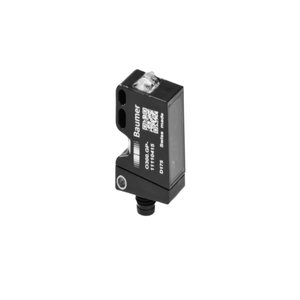

Baumer O300.GP-GW1J.72CU Photoelectric Sensor
The Baumer O300.GP-GW1J.72CU Photoelectric Sensor offers a Rectangular design, 30 β¦ 200 mm sensing distance, Push-pull output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the Background Suppression type.
| Sensing distance Tw | 30 β¦ 200 mm |
| Sensing range Tb | 15 β¦ 200 mm |
| Output circuit | Push-pull |
| Connection types | Cable 4 pin, 2 m |
Baumer O300.GP-GW1J.72CU Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Background suppression |
| Sensing distance Tw | 30 β¦ 200 mm |
| Sensing range Tb | 15 β¦ 200 mm |
| Power on indication | LED green |
| Sensing distance adjustment | Teach-in and IO-Link |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 2Β° |
| Light source | Pulsed PinPoint LED |
| Wave length | 630 nm |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 45 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Width / diameter | 12.9 mm |
| Height / length | 32.3 mm |
| Depth | 23 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +60 Β°C |
| Light indicator | LED yellow |
Ask for the Pricing of Baumer Sensor In Industrial Automation Applications O300.GP-GW1J.72CU part no: 11125058 at unbeatable prices. Detailed Specifications of O300.GP-GW1J.72CU, 11125058 feature Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 30 β¦ 200 mm. The sensor features Teach-in and IO-Link adjustment for flexible setup and utilizes an Pulsed PinPoint LED light source with a wavelength of 630 nm. It boasts a fast response time of less than < 0.49 ms, and operates within a voltage supply range of 10 β¦ 30 VDC, with a typical current consumption of 30 mA. The output function supports Light / dark operate with a Push-pull output circuit and can handle an output current of up to 100 mA. Measuring 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, this compact Rectangular sensor is connected via a Cable 4 pin, 2 m. Now's the Time to Secure a Quote for your requirement of Baumer Sensor In Industrial Automation Applications. We're committed to offering more favorable pricing and more responsive support than other Traders.
