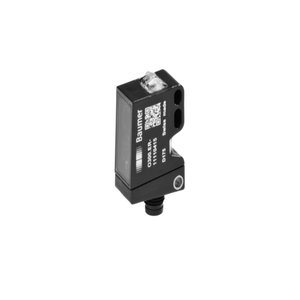

Baumer O300.ER-NV1T.72N Photoelectric Sensor
The Baumer O300.ER-NV1T.72N Photoelectric Sensor offers a Rectangular design, 15 m nominal range, Receiver, NPN complementary output, and Connector M8 4 pin connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | O300.ER-NV1T.72N |
Baumer O300.ER-NV1T.72N Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 10 m |
| Nominal range Sn | 15 m |
| Alignment / soiled lens indicator | Flashing light indicator |
| Power on indication | LED green |
| Sensitivity adjustment | qTeach |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN complementary |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 12.9 mm |
| Height / length | 32.3 mm |
| Depth | 23 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 β¦ +60 Β°C |
| Protection class | IP 67 |
| Light indicator | LED yellow |
Ask for the Pricing of Baumer Through Beam Sensor NPN O300.ER-NV1T.72N part no: 11128055 at unbeatable prices. Detailed Specifications of O300.ER-NV1T.72N, 11128055 feature Through beam sensor Model Type designed for precise object detection with a nominal range of 15 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 40 mA and a typical consumption of 30 mA. The compact Rectangular design features dimensions of 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (ASA, PMMA) offering robustness for demanding applications. The sensor connects via a Connector M8 4 pin making it suitable for seamless integration into your system. With a Receiver. Now's the Time to Secure a Quote for your requirement of Baumer Through Beam Sensor NPN. We're committed to offering more favorable pricing and more responsive support than other Traders.
