If youβre not fully sure about O200-ZR-GW1J-72CV-E026_H006, taking a closer look at Sick Diffuse Sensor, Baumer Proximity Sensor and Baumer O200 Tr Zzzx 72Nv H006 often helps compare reliability, cost, and availability.

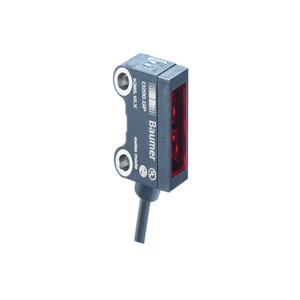

Baumer O200.ZR-GW1J.72CV/E026_H006 Photoelectric Sensor
The Banner O200.ZR-GW1J.72CV/E026_H006 Photoelectric Sensor offers a 8 mm diameter, 20 β¦ 200 mm sensing distance, Push-pull output circuit, and Cable 4 pin, 2 m connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O300 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | O200.ZR-GW1J.72CV/E026_H006 |
Baumer O200.ZR-GW1J.72CV/E026_H006 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | 20 β¦ 200 mm |
| Power on indication | LED green |
| Alignment optical axis | < 1,5Β° |
| Light source | Pulsed red LED |
| Wave length | 644 nm |
| Response time / release time | < 0.25 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 40 mA (@ 10 VDC) |
| Current consumption typ. | 16 mA (@ 24 VDC) |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 50 mA |
| Width / diameter | 8 mm |
| Height / length | 25.1 mm |
| Depth | 15.8 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +50 Β°C |
| Alignment / soiled lens indicator | Flashing output indicator |
| Output indicator | LED yellow |
| Beam type | Point |
Reach Us by Email for Baumer Light Sensor With Yellow LED Indicator O200.ZR-GW1J.72CV/E026_H006 part no: 11231263 at Discounted Rates. Key Technical Features of O200.ZR-GW1J.72CV/E026_H006, 11231263 are Intensity difference Sensor, engineered for precise detection with a sensing distance of 20 β¦ 200 mm. The sensor utilizes a Pulsed red LED with a wavelength of 644 nm, ensuring accurate and rapid response times of less than < 0.25 ms. It operates within a voltage supply range of 10 β¦ 30 VDC, offering Light / dark operate functionality with a Push-pull output circuit capable of handling up to 50 mA of output current. Measuring 8 mm in width and 25.1 mm in height, the compact Rectangular design is housed in durable Plastic (ASA, PMMA) materials. The connection is made via a Cable 4 pin, 2 m. Navigate Your Needs with a Quote for your requirement of Baumer Light Sensor With Yellow LED Indicator. Our pricing and support are unrivaled, especially when compared to other Competitors.
